Setting Up and Operating your FOT-5200
18
FOT-5200

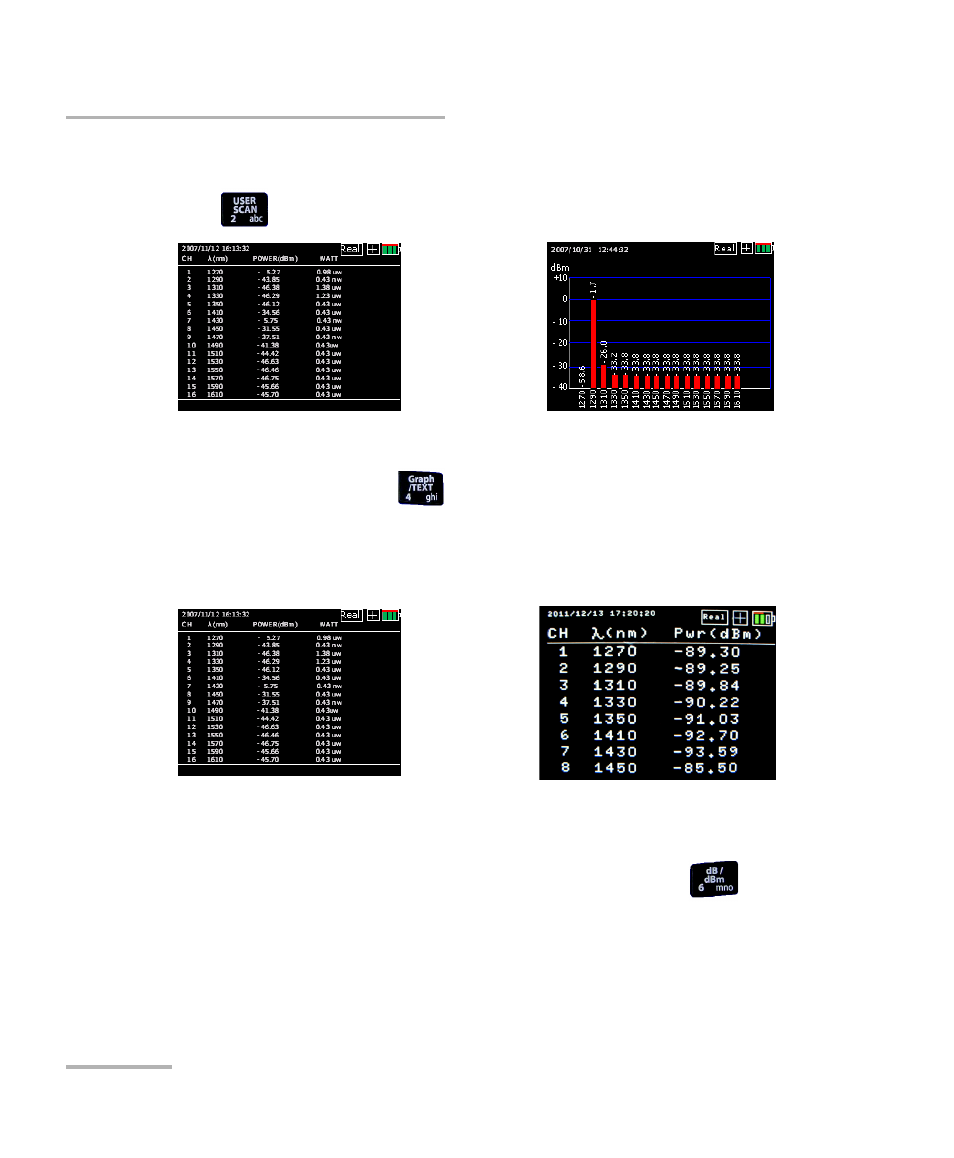

Scanning All Channels (ALL SCAN)
Scanning All Channels (ALL SCAN)
The
button scans all channels and shows a screen like the following.
If you press Graph/TEXT (
) after scanning, a graph screen like the one
on the right shows. If you press the button again it returns to text mode.
When in text mode, if you can use the right and left arrow buttons to switch
between the different text display types.
Once in the enlarged view, you can use the up and down arrows to switch
between channels 1 to 8, and 9 to 16. The dB/dBm button (
)
switches between the loss and power values.
Scan all (Text Mode)
Scan all (Graph Mode)
Scan all (Full View)
Scan all (Enlarged View)
