Upgrading The Computer
5 - 4 Upgrading the Hard Disk Drive
5
4. Pull the HDD assembly out of the bay and disconnect cables & .
5. Remove screws - , and lift the hard disk out of the case.
6. Insert the new hard disk, and reverse the removal procedures to install the new
hard disk.
3 4 5
3
4
5

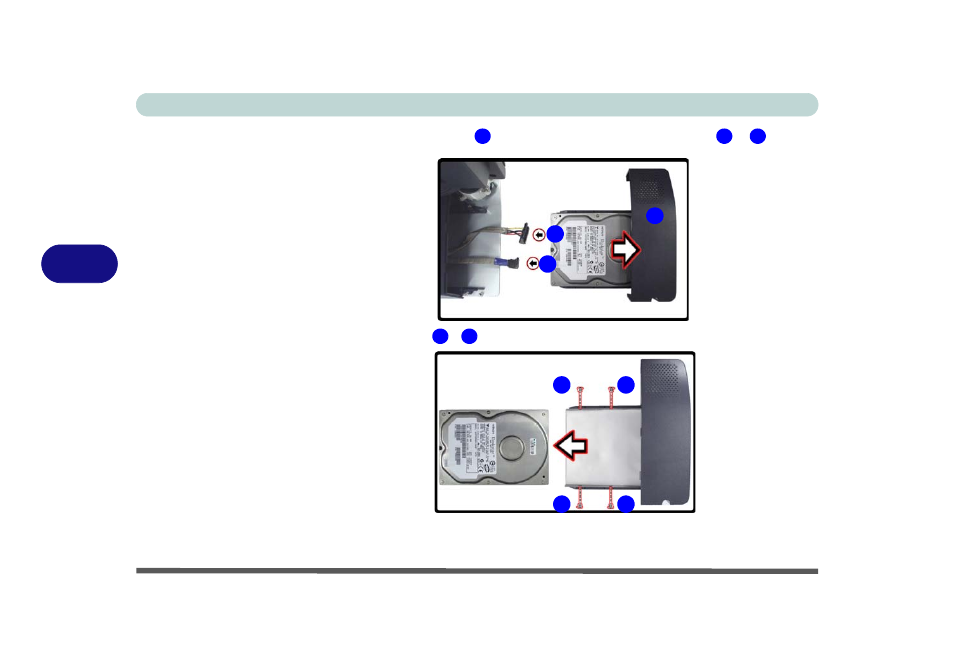

Figure 5 - 2
Hard Disk Drive
Assembly
Removal
Figure 5 - 3
Hard Disk Drive
Assembly Screws
