1 - 16 System Map: Rear View
Quick Start Guide
1
System Map: Rear View
Figure 1 - 7

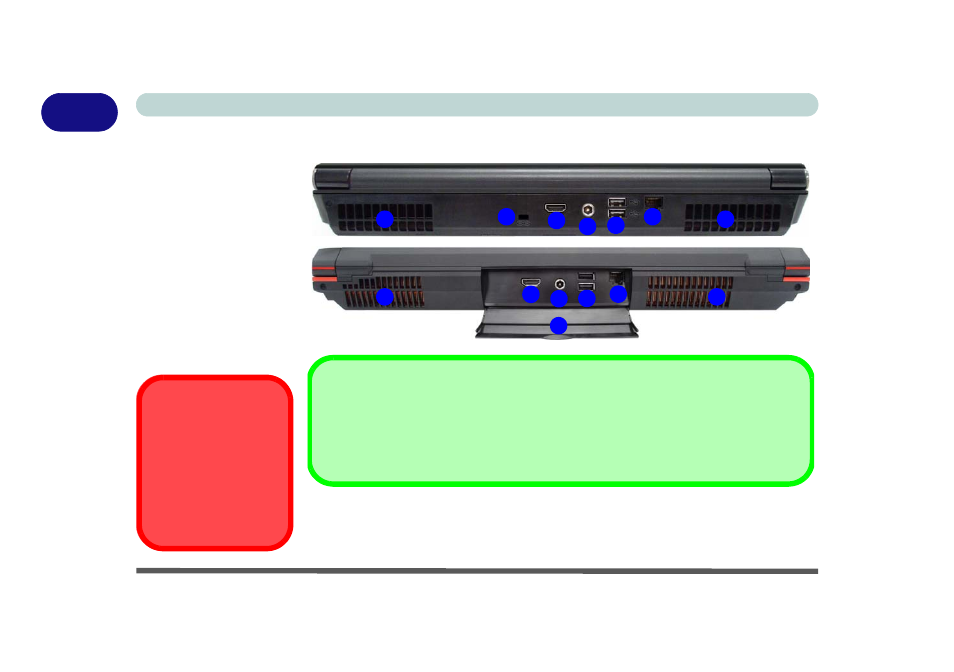

Rear View
1. Vent/Fan Intake/
Outlet
2. Security Lock
Slot (Model A
Only)
3. HDMI-Out Port
4. DC-In Jack
5. 2 * USB Ports
6. RJ-45 LAN Jack
7. Rear Cover
(Model B Only)
Overheating
To prevent your comput-
er from overheating
make sure nothing
blocks the vent(s)/fan in-
take(s) while the com-
puter is in use.
1 5 3
5 4
7
1
HDMI-Out Port
Note that the HDMI-Out Port supports video and audio signals to attached external dis-
plays (also see
“HDMI Audio Configuration” on page B - 11 ).
