Upgrading The Computer
Upgrading the Hard Disk Drive(s) 6 - 5
6
4. Lift the hard disk assembly out of the computer in the direction of arrow .
5. Remove the screws - and the cover bracket .
6. Reverse the process to install a new hard disk drive (do not forget to replace all the
screws and covers)
.
4

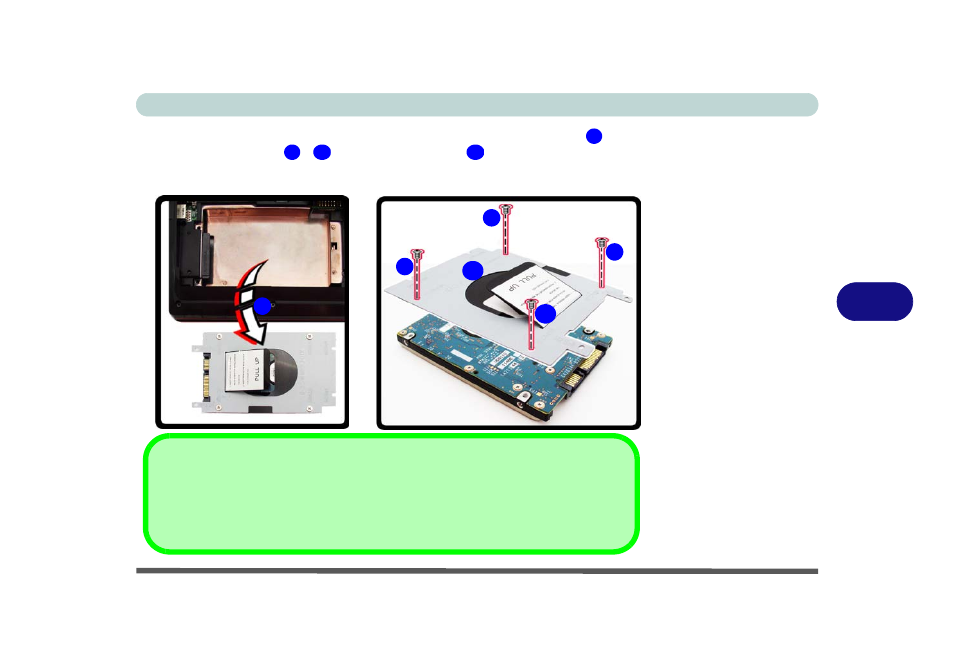

Figure 6 - 3
HDD Assembly
Removal
5 8 9
6
5
4
7
8
9
Hard Disk Screws & Cover
The hard disks and covers pictured here may appear slightly different from your model design (these
designs are subject to change and upgrade without notice). Pay careful attention to the screws and
cover bracket orientation.
