1 - 8 System Map: Front View - Model B
Quick Start Guide
1

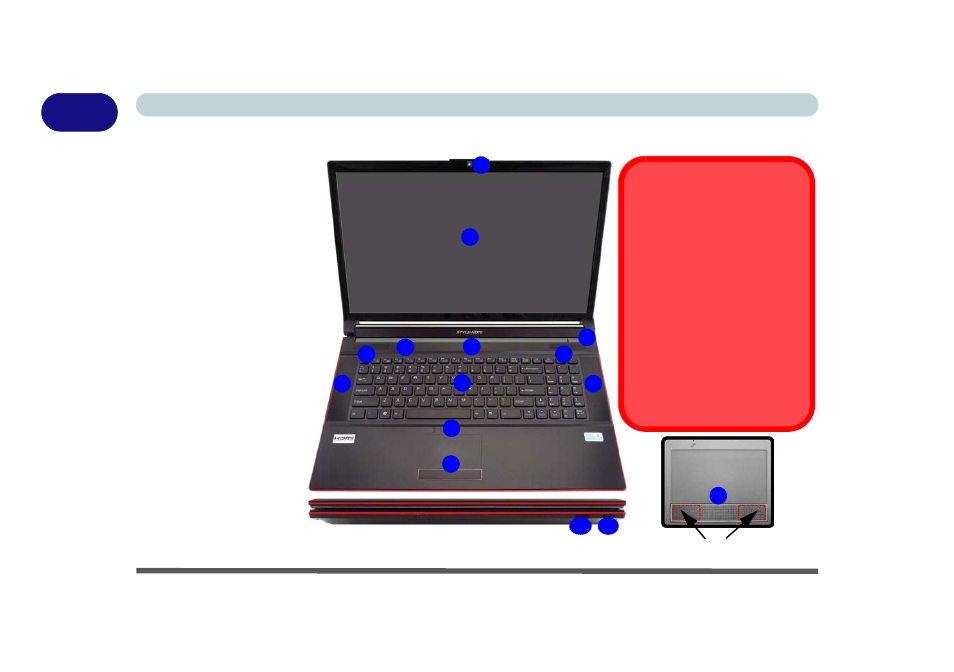

System Map: Front View - Model B
Figure 1 - 3
Front View
(Model B Computers)
1. Built-In PC Camera
(Optional)
2. LCD
3. LED Status
Indicators
4. LED Hot Key
Buttons
5. LED Power Button
6. Speakers
7. Keyboard
8. Built-In Microphone
9. Touchpad &
Buttons
10. Consumer Infrared
Transceiver (for
Optional TV Tuner)
11. LED Power
Indicators
Note: The Fingerprint
Reader module is optional
for Model B computers.
2
6
1
8
9
5
7
Wireless Device
Operation Aboard Aircraft
The use of any portable electronic
transmission devices aboard air-
craft is usually prohibited. Make
sure the module(s) are OFF if you
are using the computer aboard air-
craft.
Use the key combinations to toggle
power to the WLAN/Bluetooth
modules, and check the LED indi-
cator icon to see if the modules are
powered on or not (see
Table 1 - 6,
on page 1 - 12 / Table 1 - 4, on
page 1 - 9 ).
Touchpad Buttons (valid operation area)
9
10
6
6 6
11
3 4
