Elenco SEE AMFM108CK User Manual
Page 54
-53-

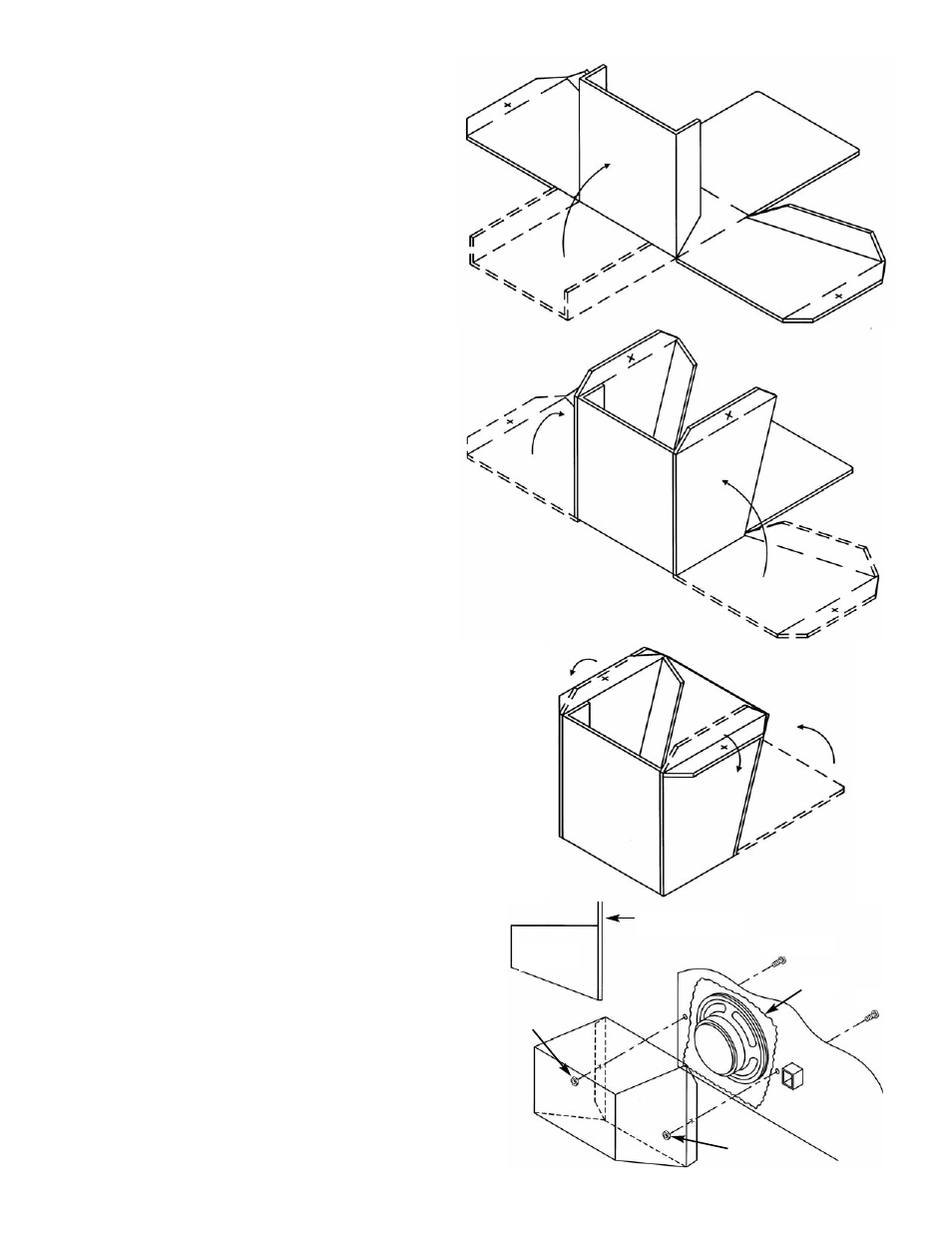

3. Bend the top side upward as shown.
4. Bend the two sides upward. Attach the
three sides using scotch tape or glue
(Elmer’s, Duco Cement, or other).
5. Bend the bottom side upward and attach it
to the other sides using scotch tape or glue.
Bend the two mounting flaps down.
Side View
Back View
6. Place the baffle over the speaker. Align the
mounting holes and attach it using the two
screws and two nuts supplied. The screws
should go through the X mark on the baffle flap.
Optional: To make an air tight seal, place a bead of
glue between the PC board and the baffle edges.
Baffle
PC board
Screw
Screw
Glue
Nut
Nut
