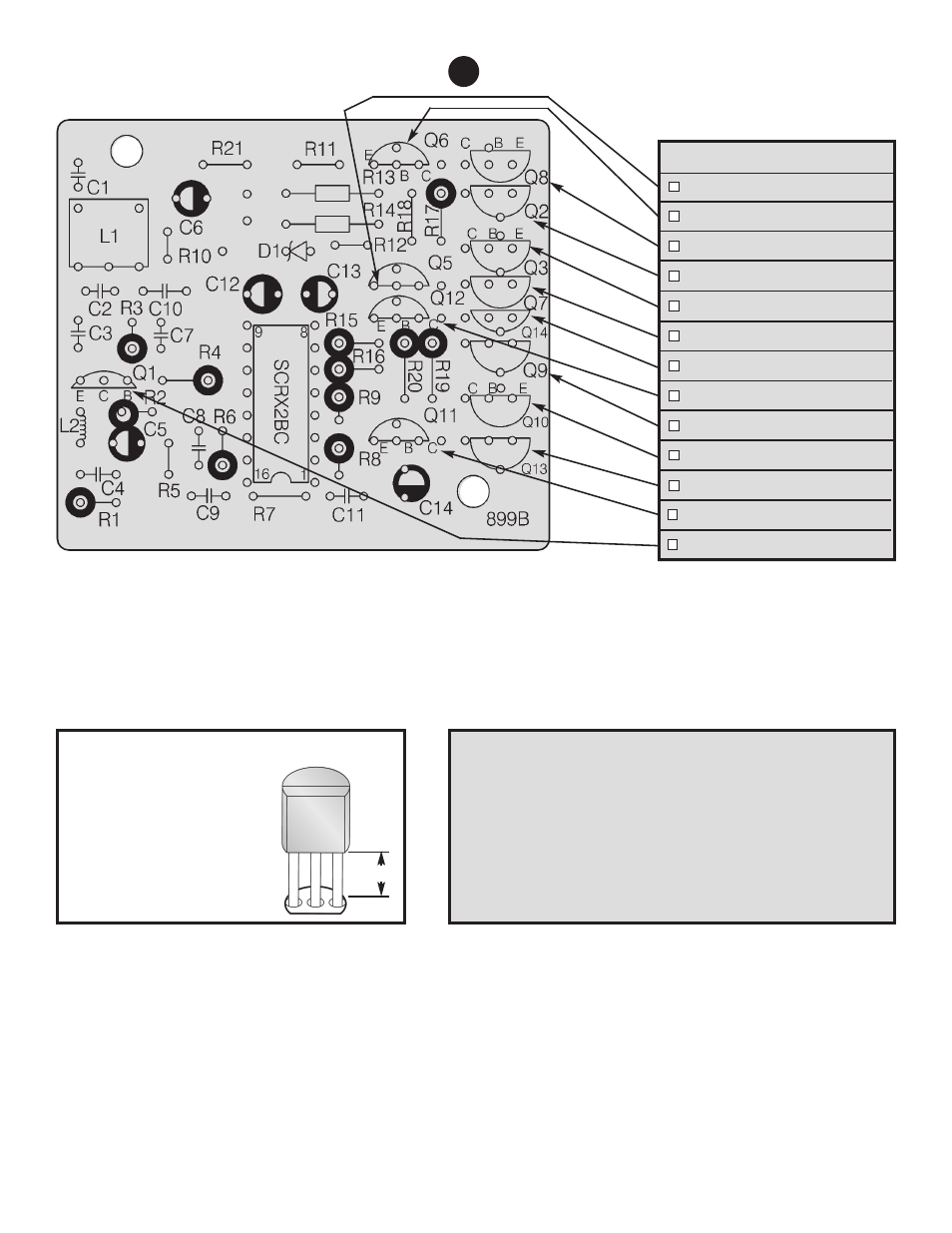

(see Figure H)

Q5 - S8550 Transistor

Q6 - S8550 Transistor

Q8 - S8050 Transistor

Q2 - 9014 Transistor

Q3 - 9014 Transistor

Q7 - S8050 Transistor

Q14 - S8050 Transistor

Q12 - S8550 Transistor

Q9 - 9014 Transistor

Q10 - 9014 Transistor

Q13 - S8050 Transistor

Q11 - S8550 Transistor

Q1 - C945 Transistor

-19-

Inspection:

Double check that you have installed all of your parts in
the proper places. Be sure they are not touching each
other and creating short circuits.

Inspect all solder

connections and make sure none of them are weak. Use
a magnifying glass if you have one. Check all solder
connections for short circuits. Be thorough as it is much
easier to find and correct problems now rather than later.

Figure H

Mount the transistor with
the flat side in the same
direction marked on the
PC board.

1/8”
