Lay resistor flat against the
PC board.

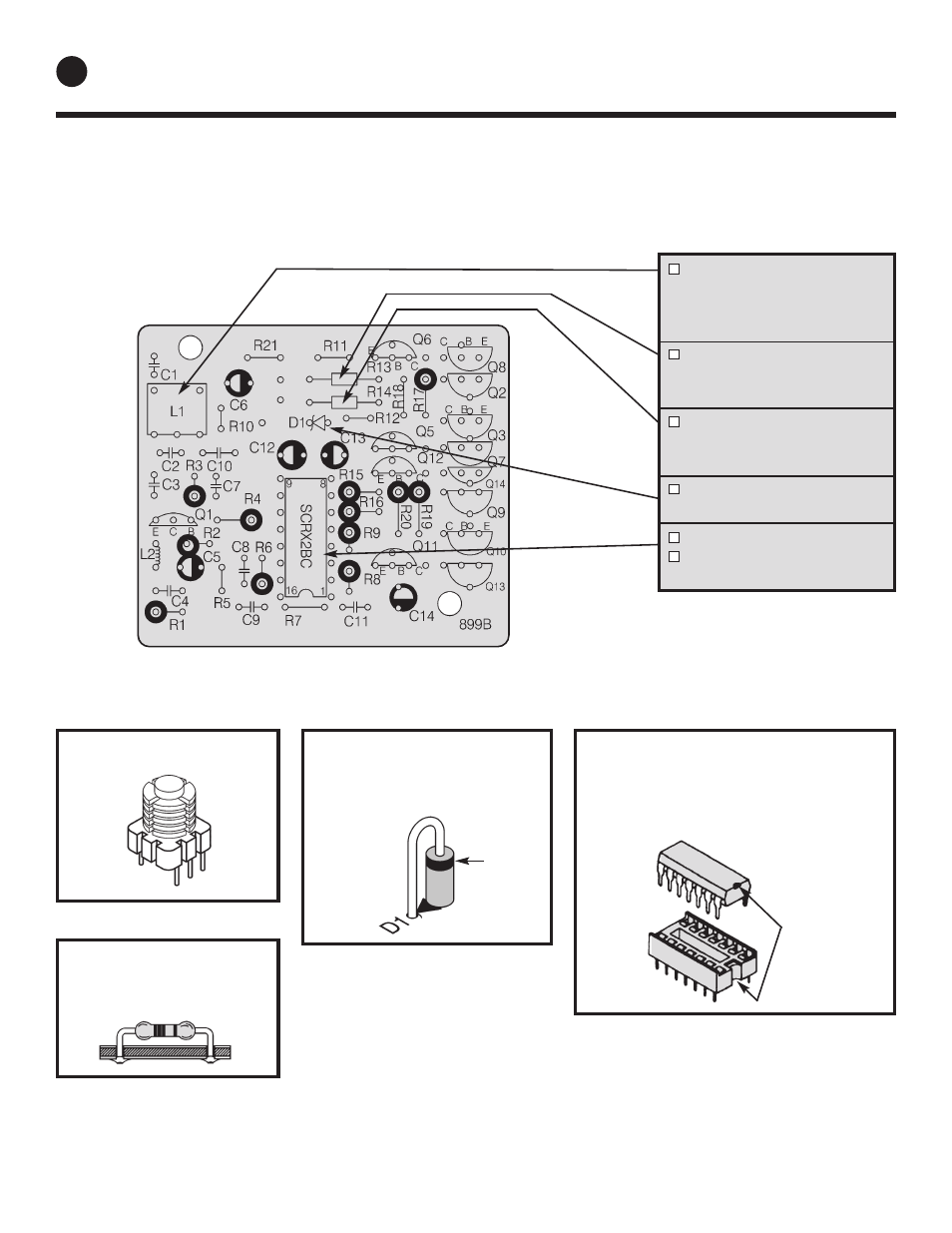

ASSEMBLE THE FOLLOWING COMPONENTS TO THE PC BOARD
Review the soldering and parts identification instructions on p.5 at this time. In all of the following steps the
components must be installed on the top legend side of the PC board. The board is turned over to
solder the component leads.
Figure D
Align the notch on the socket (if any) with
the notch marked on the PC board. Solder
the socket to the PC board. Insert the IC
into the socket with the notch as shown.
Mount with the band pointing as
shown.
Figure C
Notch
Figure A
L1 - 9 Turn Inductor (this part
has been pre-tuned, you do not
need to adjust it).
(see Figure A)
R13 - 1k
Ω
5% 1/4W Res.
(brown-black-red-gold)
(see Figure B)
R14 - 1k
Ω
5% 1/4W Res.
(brown-black-red-gold)
(see Figure B)
D2 - 3V Zener Diode
(see Figure C)
IC1 - 16-pin IC Socket
IC1 - SCRX2BC IC
(see Figure D)
Band
