Elenco Radio Controlled Car Soldering User Manual
Page 19

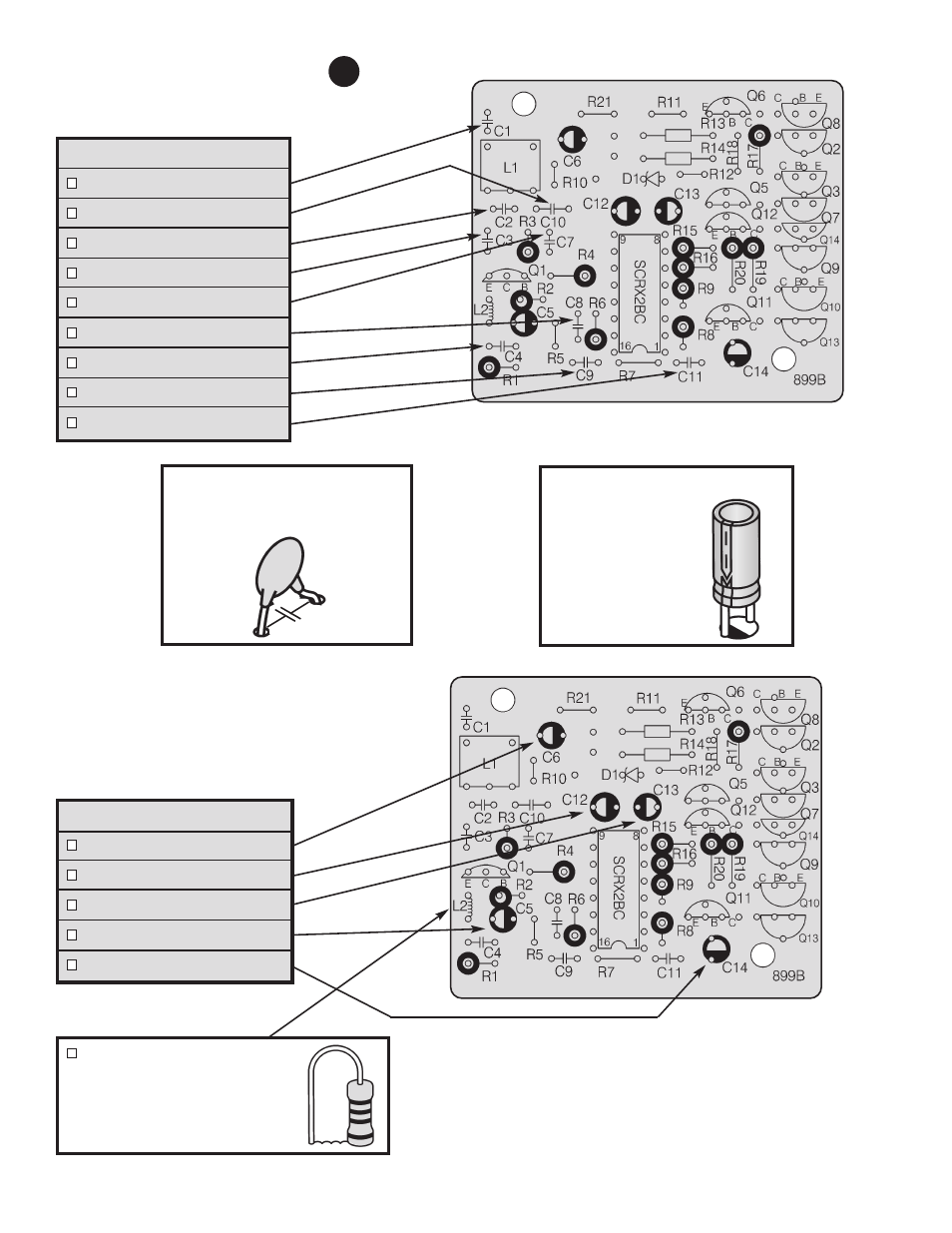

(see Figure G)
C6 - 220
µ
F Lytic Capacitor
C12 - 220
µ
F Lytic Capacitor
C13 - 220
µ
F Lytic Capacitor
C5 - 4.7
µ
F Lytic Capacitor
C14 - 220
µ
F Lytic Capacitor
(see Figure F)
C1 - 10pF (10) Capacitor
C10 - 0.01
µ
F (103) Capacitor
C2 - 27pF (27) Capacitor
C3 - 27pF (27) Capacitor
C7 - 0.1
µ
F (104) Capacitor
C8 - 500pF (501) Capacitor
C4 - 3,300pF (332) Capacitor
C9 - 0.01
µ
F (103) Capacitor
C11 - 2,200pF (222) Capacitor
-18-
Figure G
Mount the
electrolytic
capacitor as
shown, noting the
polarity as
shown.
13
L2 - 8.2
µ
H 10% Inductor
(gray-red-gold-silver)
Stand inductor on end as shown.
Figure F
Mount the ceramic or mylar
capacitor as shown below.
