Operator's Manual
CRT Models 5040 and 6040E
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 CST
7
1
19
18
3
5
8
7
10
5
9
8
7
1
7
9
10
17
10
4
4
3
8
9
14
7
8
9
10
15
8
12
16
8
2
13
8
11
8
15
12
6

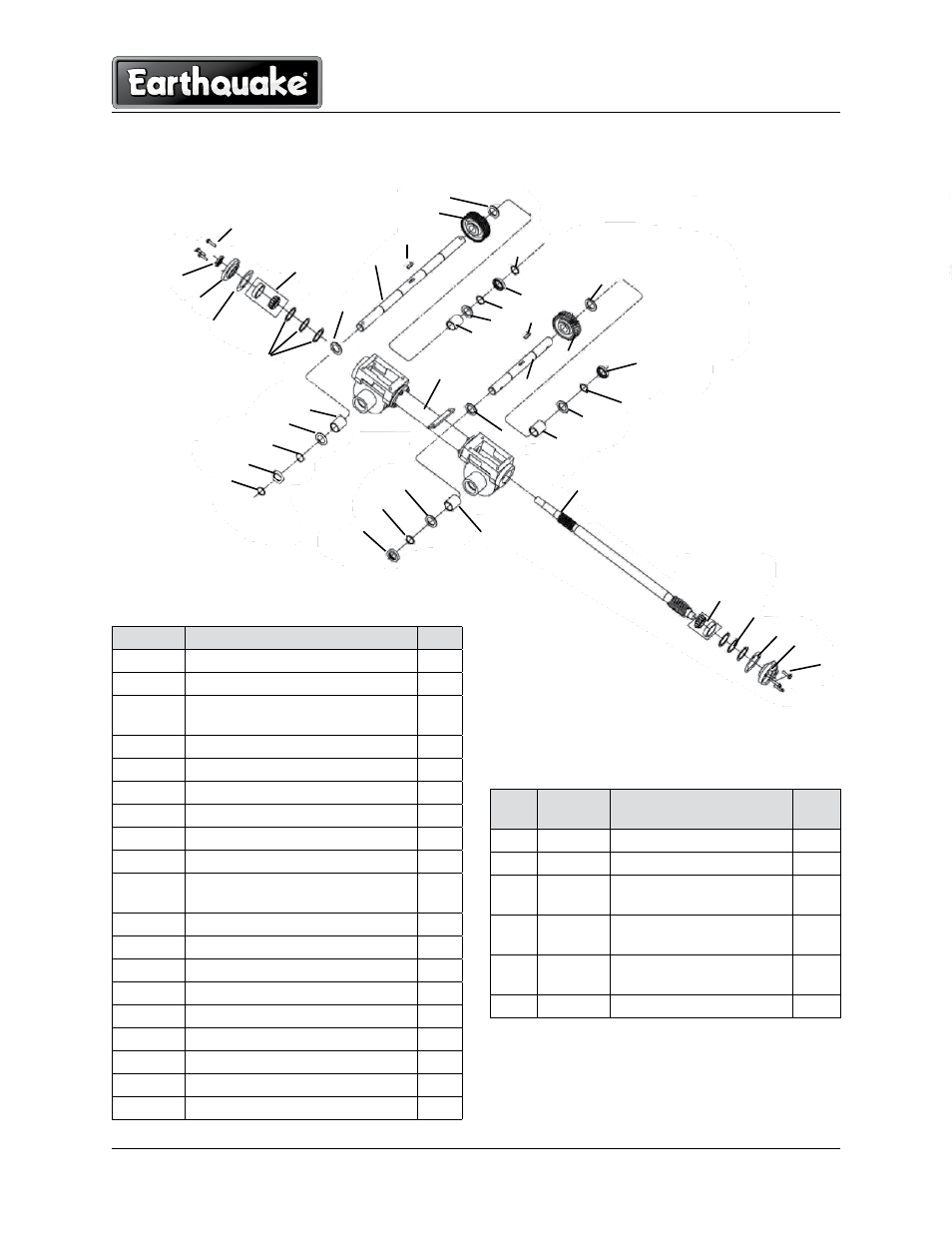

CRT wHEEL & TILLER SHAFT PARTS & PARTS LIST
REF. no. dESCRiPtion qtY.
1 BOLT, M6 x 25MM 6
2 COVER, REAR TRANSMISSION 1
3 GASKET, FRONT AND REAR
TRANSMISSION COVER
2
4 SHIM, DRIVE SHAFT 6
5 BEARING, TAPPERED ROLLER 2
6 SHAFT, DRIVE CRT SHAFT 1
7 BUSHING, TINE AND WHEEL SHAFT 4
8 SHIM, TINE AND WHEEL SHAFT 8
9 RING, RETAINER INTERNAL 4
10 SEAL, GREASE TINE AND WHEEL
SHAFT
4
11 GEAR, WORM TINE CRT SHAFT 1
12 KEY, WOODRUFF 2
13 SHAFT, TINE 1
14 HOUSING, TRANSMISSION 1
15 RING, RETAINER ExTERNAL 2
16 GEAR, WORM WHEEL CRT SHAFT 1
17 SHAFT, WHEEL 1
18 COVER, FRONT TRANSMISSION 1
19 SEAL, GREASE INPUT 1
REF.
no.
PARt # dESCRiPtion qtY.
1 1500P101 BOLT, M6 x 25MM 6
2 1500P102 COVER, REAR TRANSMISSION 1
3 1500P103 GASKET, FRONT AND REAR
TRANSMISSION COVER
2
10 1500P110 SEAL, GREASE TINE AND
WHEEL SHAFT
4
18 1500P119 COVER, FRONT
TRANSMISSION
1
19 1500P120 SEAL, GREASE INPUT 1
AVAiLABLE SuPPoRt PARtS
PARtS LiSt
