CRt hAndLEBAR PARtS LiSt
REF.
no.
PARt # dESCRiPtion qtY.
1 2104 NUT HEx TWO-WAY 3/8-16 6
2 48762 BOLT 3/8-16 x 1” CARRIAGE 4
3 503 BOLT 5/16-18 x 1-1/2 HH 1
4 53606 NUT-NYLOC, #10 2
5 53607 NUT-JAM, 5/16-24 4
6 53612 LINK 11-5/8” LONG 1
7 53613 LINK 9-1/2” LONG 1
8 53614 PIN CLEVIS 1/4 x 1-1/2” 1
9 -- ----- --
10 53620 SPRING COMPRESSION FORWARD
ARM
1
11 332022 HANDLEBAR MOUNT WELDMENT 1
12 53629 CABLE MOUNT BRACKET 1
13 53630 CABLE - REAR TINE 39” SHEATH 2
14 53631 GRIP HANDLEBAR 1” ID FLANGE-
LESS
2
15 53632 NUT PUSH 1/4” 1
16 53650 LEVER CONTROL REAR TINE 2
17 53679 HANDLEBAR WELDMENT 1
18 60G56 NUT-BI-WAY LOCK, 5/16-18 1
19 90138 BOLT 3/8-16 x 3/4 SERRATED
FLANGE
4
REF. no. PARt # dESCRiPtion qtY.
20 -- ---- --
21 300500 GROMMET, 1/2” ID 1
22 300501 NUT, WING M5 x .8 2
23 300502 SCREW, THUMB M5 x .8 2
24 300503 WIRING HARNESS (NOT SHOWN) 1
25 46122 BATTERY, 12-VOLT 7-AMP 1
26 4656 BATTERY BOx 1
27 4657 COVER, BATTERY BOx 1
28 4660 SOLENOID 1
29 4661 CHARGER PIGTAIL 1
30 4663 CAP, CHARGER PIGTAIL 1
31 4681 BATTERY CHARGER (NOT SHOWN) 1
32 53106 NUT, BI-WAY LOCK 1/4-20 2
33 53696 SUPPORT, BATTERY BOx 1
34 64703* SWITCH, KEY 1
35 69169 BOLT, PHILLIPS TRUSS HD 1/4-
20 x 3/4”
2
36 53705 ELECTRICAL PACK ASSEMBLY
W/CHARGER (NOT SHOWN)
1
37 332001 WELDMENT, ENGINE MOUNT 1
38 332003 WELDMENT, REAR BELT AND
HANDLE BAR MOUNT
1
* On Model 6040E the key switch is located on the engine.
6065VE ELECtRiCAL PARtS LiSt
21
22
23
25
26
27
28
29
30
32
33
34
35

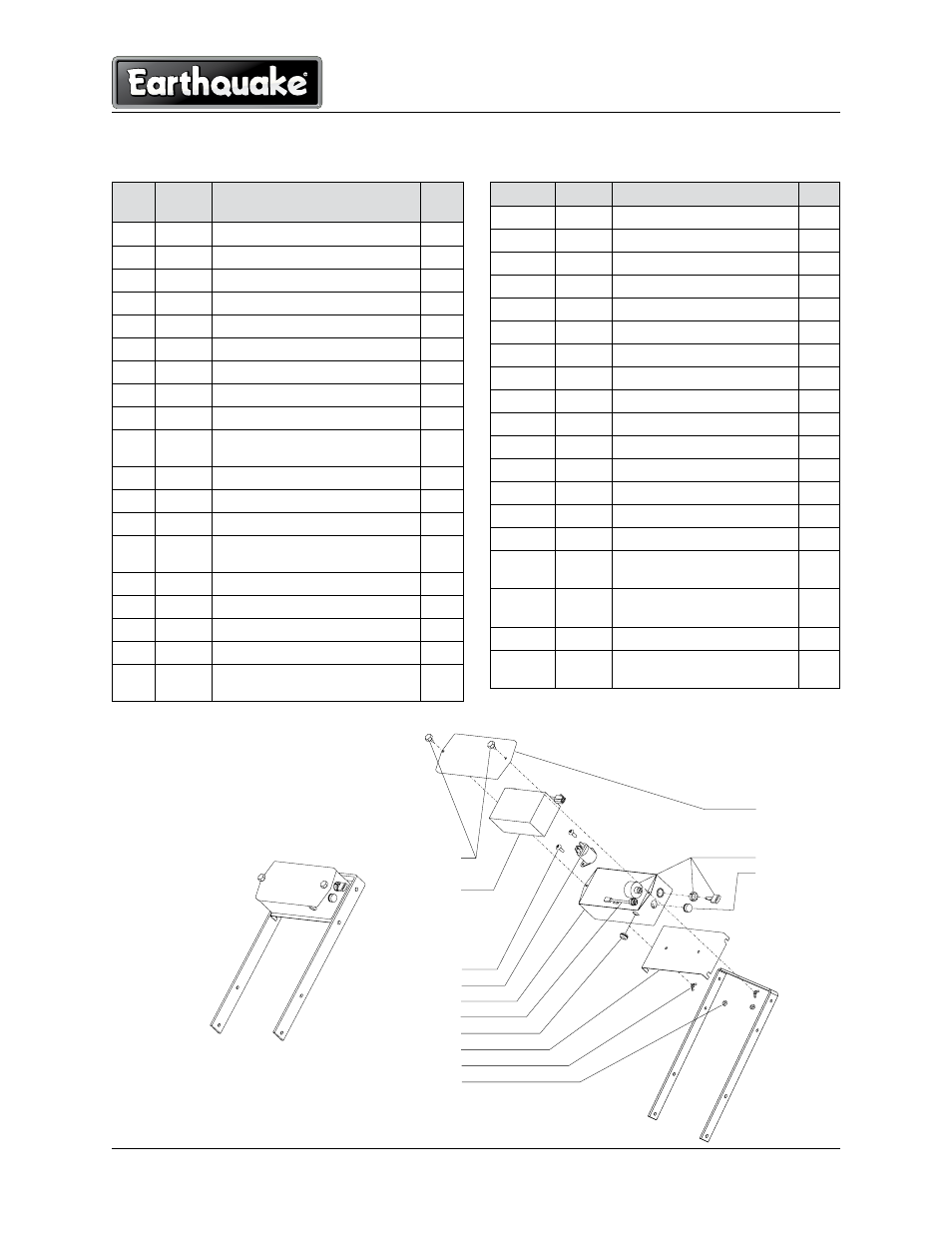

6040E BAttERY Box ExPLoSion
