Operator's Manual
CRT Models 5040 and 6040E
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 CST
13

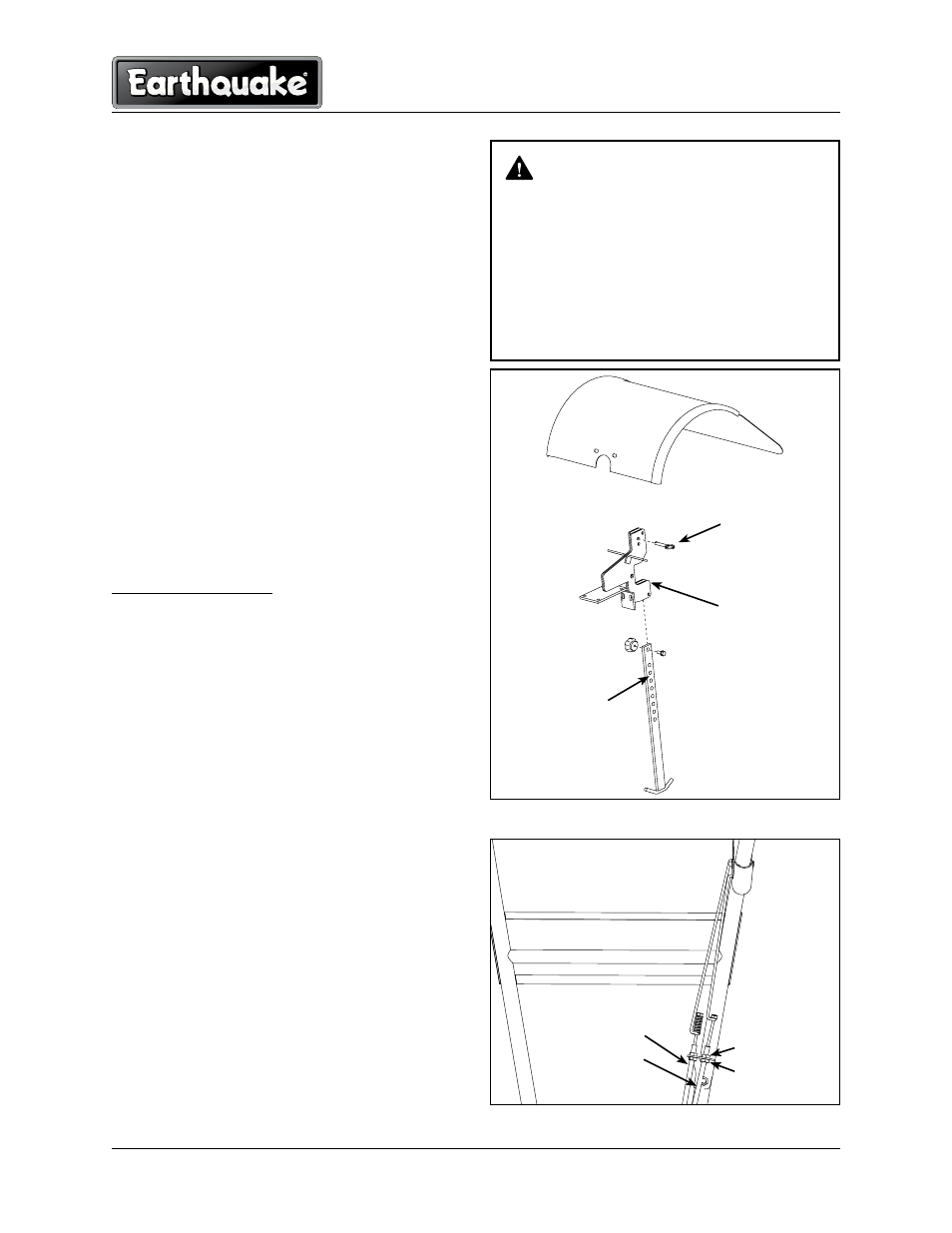

dEPth REGuLAtoR LEVER
Tilling depth is controlled by the height of the depth
regulator lever.
To adjust tilling depth: (SEE FiGuRE 4)
1. Remove detent pin.
. Raise the depth regulator lever to position tines at
chosen tilling depth.
3. Align hole in depth regulator lever with hole in depth
regulator bracket and replace detent pin.
Depth Regulator lever Down = Shallower tilling.
Place the detent pin in the top hole of the depth
regulator lever for shallowest tilling.
Depth Regulator lever up = Deeper tilling. Place the
detent pin in the bottom hole of the depth regulator
lever for deepest tilling.
BELt tEnSion AdjuStmEnt
Proper belt tension is critical to good performance.
After 1/ hour of operation, all cables may have to be
adjusted due to initial stretch. Thereafter, check tension
after every hours of operation.
to increase belt tension: (SEE FiGuRE 5)
1. Loosen upper jam nut. Turn nut up cable in 1/8”
increments.
. Tighten lower jam nut.
3. Check adjustment.
This procedure can be repeated until conduit adjust-
ment bolts are fully adjusted. If no more adjustment can
be made, belt may have to be replaced.
depth regulator
bracket
depth regulator
lever
detent pin
figure 4
WaRning
do not AdjuSt tiLLinG dEPth unLESS
dRiVE SAFEtY ContRoL LEVERS ARE RE-
LEASEd to nEutRAL PoSition.
ALWAYS SEt thE dEPth REGuLAtoR LEVER
in thE tRAnSPoRt PoSition BEFoRE StARt-
inG EnGinE, thAt iS, PLACE thE dEtEnt Pin
in thE hiGhESt hoLE oF thE dEPth REGu-
LAtoR LEVER.
reverse cable
forward cable
upper jam nut
lower jam nut
figure 5
