BELt REPLACEmEnt PARt #’S:
33044 (reverse)
33045 (forward)
ChAnGE FoRWARd/REVERSE BELt
1. Turn off engine. Engine must be cool.
. Remove spark plug wire and secure from spark plug.
3. Remove belt guard.
•remove the forward belt from the forward engine
pulley:
- gently pull the engine recoil rope to rotate the
pulley.
- with the pulley turning, force the forward belt out
of the pulley groove.
- slide the belt free of the engine pulley.
- pull the forward belt down and out of the way.
• remove the reverse belt from the reverse engine
pulley:
- gently pull the engine recoil rope to rotate the
pulley.
- with the pulley turning, force the reverse belt out
of the pulley groove.
- slide the belt free of engine pulleys and reverse
belt guides.
- pull belt down and away from transmission pulley.
• install new reverse belt:
- thread belt up from bottom.
- place belt around transmission pulley in groove.
- place belt under reverse belt guides.
- gently pull engine recoil rope while forcing the
belt over the edge of the engine pulley into the
pulley groove.
• install new forward belt:
- place forward belt in transmission pulley groove.
- gently pull the engine recoil rope to rotate the pul-
ley while forcing the forward belt into the V-groove.
4. Replace belt guard.
5. Attach spark plug wire.
WaRning
tEmPERAtuRE oF muFFLER And nEAR BY AR-
EAS mAY ExCEEd 150° F. AVoid thESE AREAS.
CauTion
do not oPERAtE tiLLER BEFoRE REAd-
inG thE EnGinE mAnuAL PRoVidEd in thE
PARtS PACkEt.
iMpoRTanT
EnGinE CAn oVERhEAt And BEComE dAm-
AGEd iF dEBRiS BLoCkS thE CooLinG SYS-
tEm oR RotAtinG SCREEn.
nEVER Run EnGinE Without ComPLEtE AiR
CLEAnER inStALLEd on EnGinE.

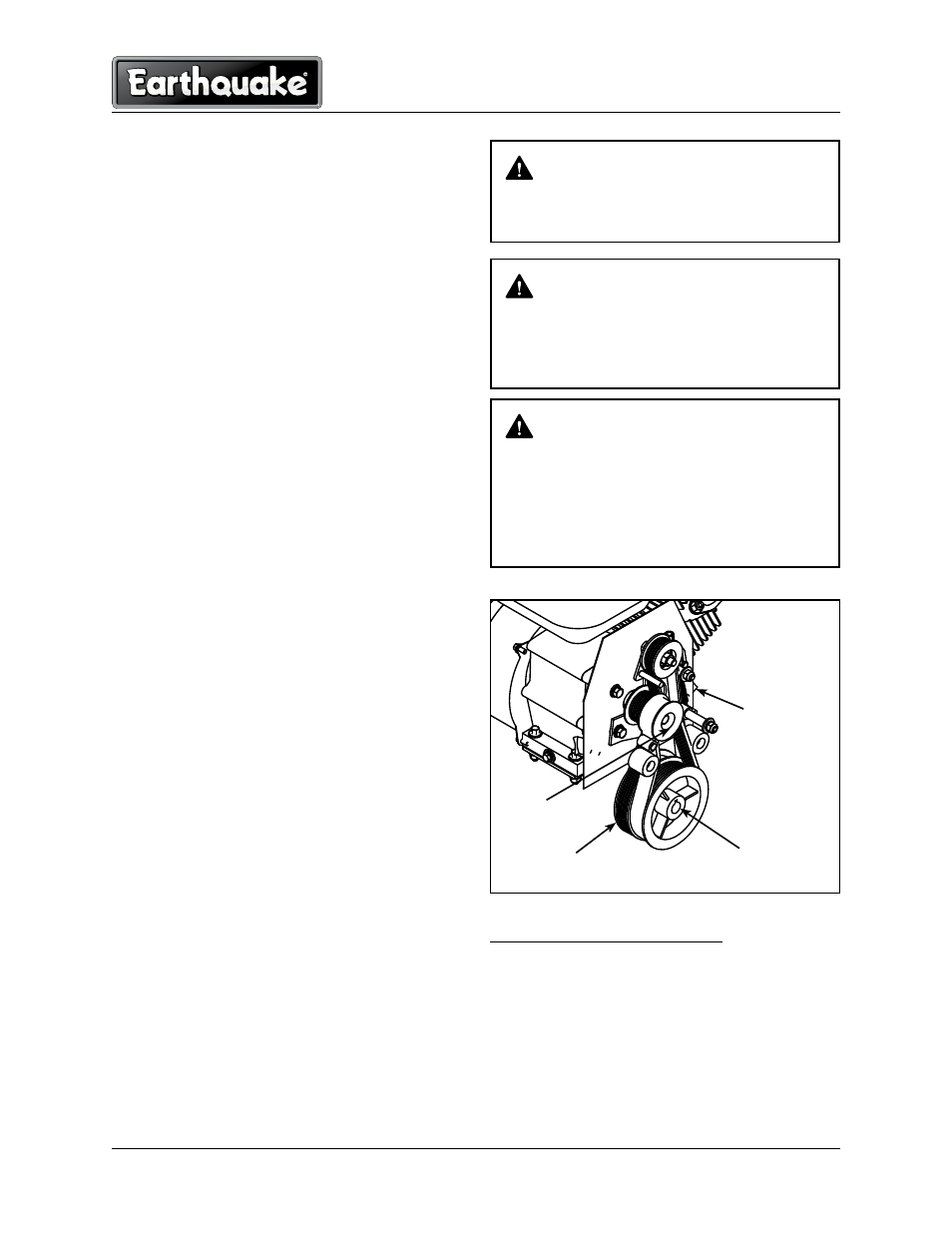

Reverse Belt,
Transmission
Pulley
Forward Belt
Engine Pulley
