IPC932-230-FL Series U ser’s Manual
Hardware Installation 22
2.5 Installing the optinal Fan Module
IPC932-230-FL provides one PCIex1 and one PCIex4 or 1 PCI & 1 PCIex4 for expansion. For
the system dissipation generated by PCI/PCIe cards, we strongly suggest that customer
should use our optional fan module, to install the optional system fan, please follow the steps
below:

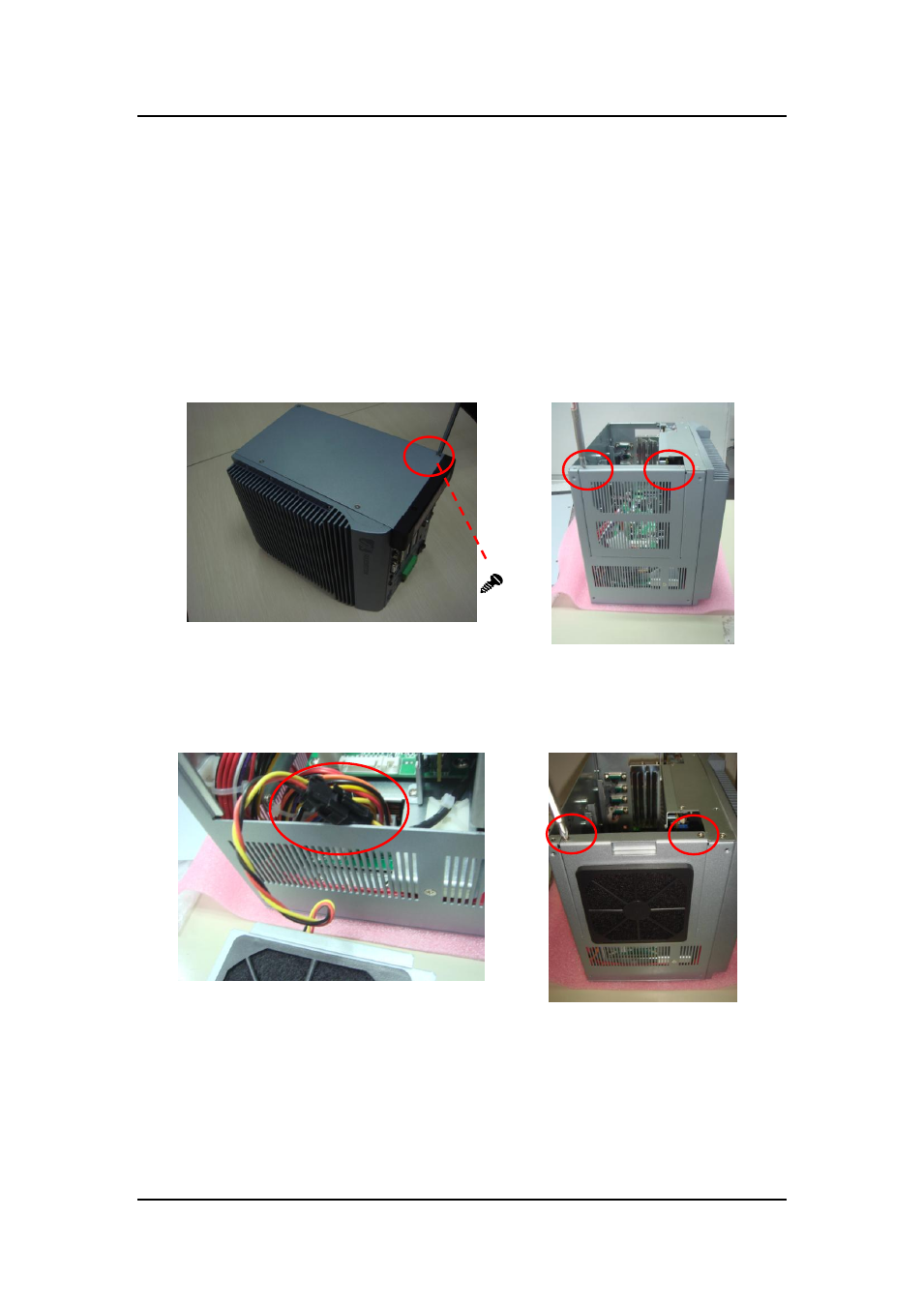

Step 1 Turn off the system.
Step 2 Disconnect the power connector.
Step 3 Loosen screws to remove the top cover from the chassis and remove the two
screws on the rear panel as red marked.
Step 4 Plug the fan cables connected to the IPC932, and then attach the system
fan module to the IPC932 and secure it by two screws.
