IPC932-230-FL Series U ser’s Manual
Introduction 13

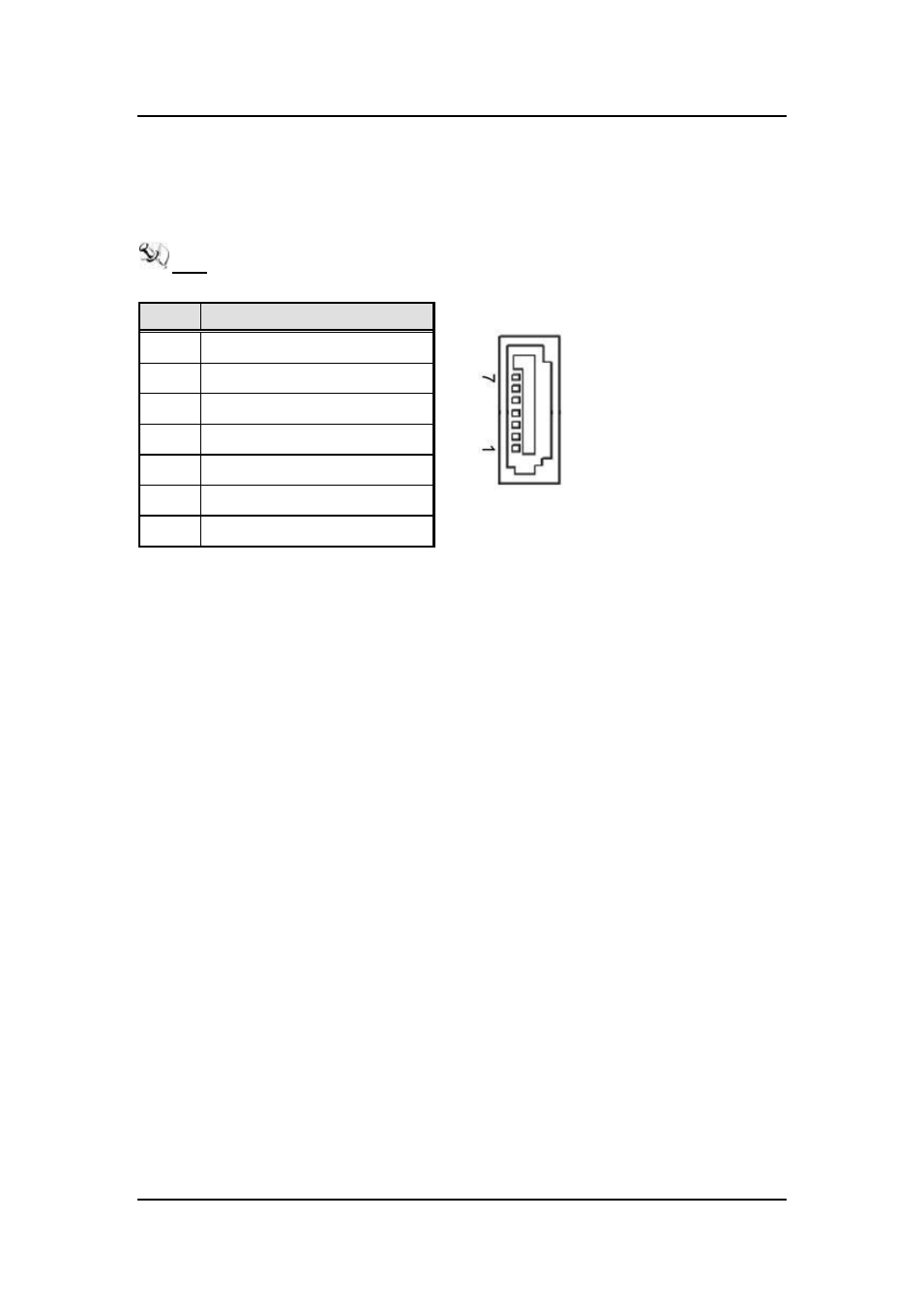

1.7.9 Serial ATA Connectors (SATA1~SATA2)
These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for
high-speed SATA interfaces. They are computer bus interfaces for connecting to devices such
as hard disk drives.This system has two SATA 3.0 ports with 6Gb/s performance.
Note: Due to Gen. 2 SSD with JMicron controller has compa tibility issue with Intel
Q87 PCH, we strongly recommend to use Gen. 3 SSD on IPC932.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
