IPC932-230-FL Series U ser’s Manual
Introduction 7

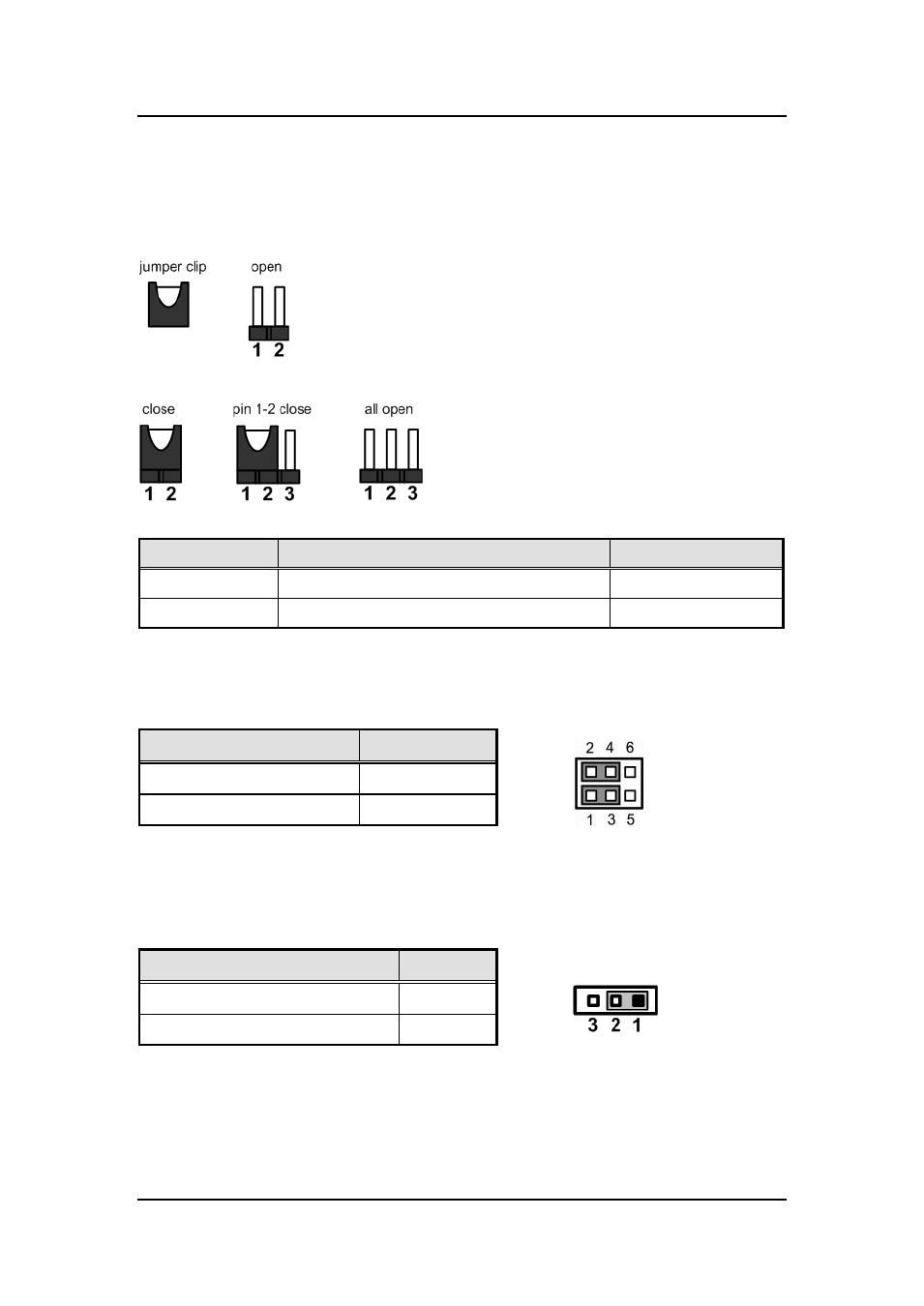

1.6 Jumper Settings
The IPC932-230-FL has a number of jumpers inside the chassis that allow you to
configure your system to suit your application. The table below lists the functions of
the various jumpers.
Jumper Description Jumper Setting
JP3 Audio Amplifier Selection : Disable 1-3 , 2-4 close
JP1 Clear RTC : Normal 1-2 close
1.6.1 Audio Amplifier Selection (JP3)
This jumper is for enabling or disabling audio amplifier.
1.6.2 Restore BIOS Optimal Defaults (JP1)
Put jumper clip to pin 2-3 for a few seconds then move it back to pin 1-2. Doing this procedure
can restore BIOS optimal defaults.
Function Setting
Disable (Default) 1-3, 2-4 close
Enable 3-5, 4-6 close
Function Setting
Normal operation (Default) 1-2 close
Restore BIOS optimal defaults 2-3 close
