IPC932-230-FL Series U ser’s Manual
Introduction 14

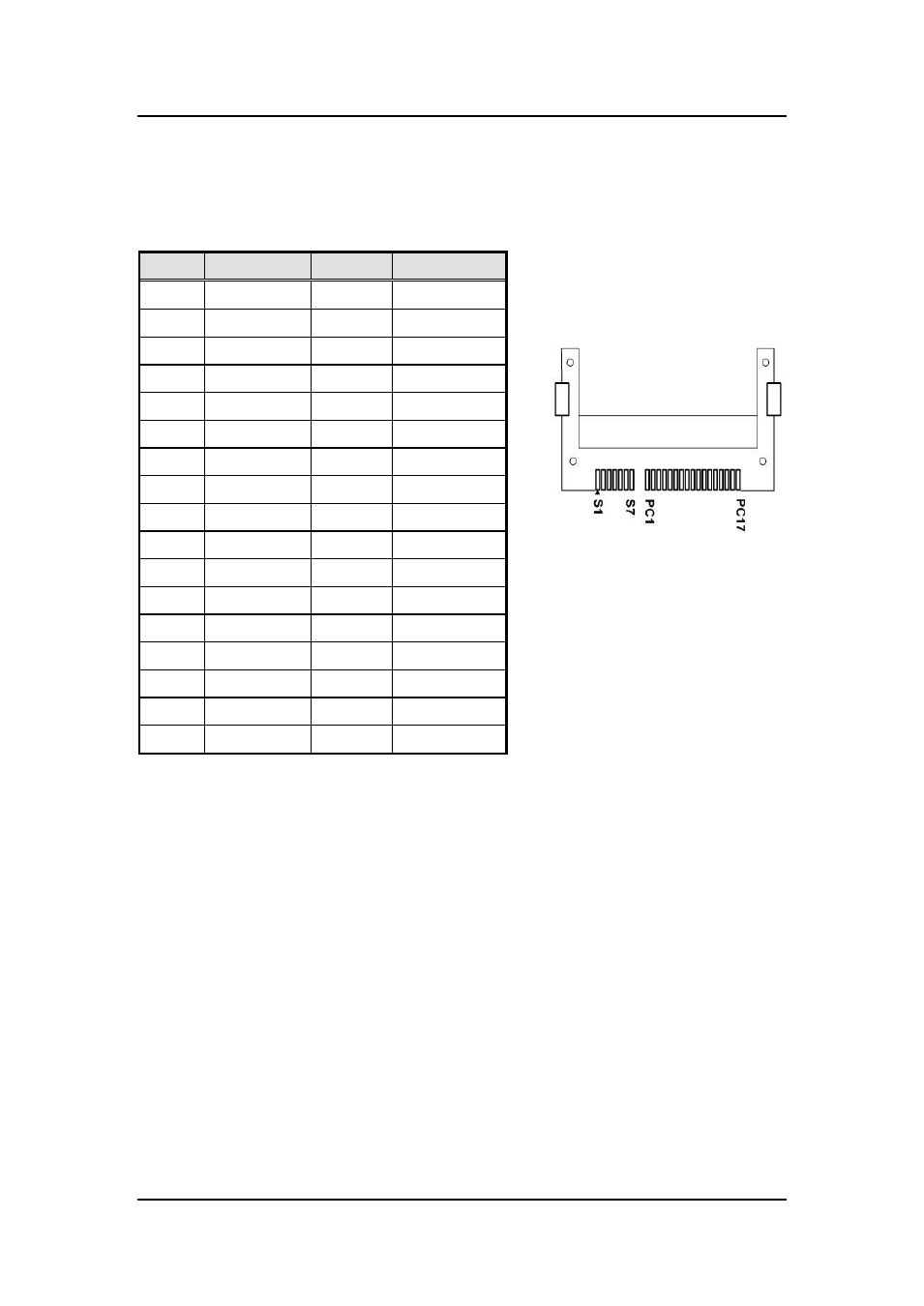

1.7.10 CFast ™ Socket (SCF1)
The board is equipped with a CFast
TM
socket to support CFast
TM
card which is based on the
Serial ATA bus. The socket is specially designed to avoid incorrect installation of CFast
TM
card.
When installing or removing CFast
TM
card, please make sure system power is off. The
CFast
TM
card by default identifies itself as C: or D: drive in your PC system.
Pin Signal Pin Signal
S1 GND PC1 NC
S2 TX+ PC2 GND
S3 TX- PC3 NC
S4 GND PC4 NC
S5 RX- PC5 NC
S6 RX+ PC6 NC
S7 GND PC7 GND
PC8 NC
PC9 NC
PC10 NC
PC11 NC
PC12 NC
PC13 3.3V
PC14 3.3V
PC15 GND
PC16 GND
PC17 NC
