IPC932-230-FL Series U

ser’s Manual

Hardware Installation

The IPC932-230-FL Series offers a convenient drive bay module for users to install
HDD. The system offers users two 2.5

” Hard Disk Drive for installation. Please follow

the steps:

Step 1 Turn off the system.

Step 2 Disconnect the power connector.

Step 3

Loosen screws to remove the top cover from the chassis.

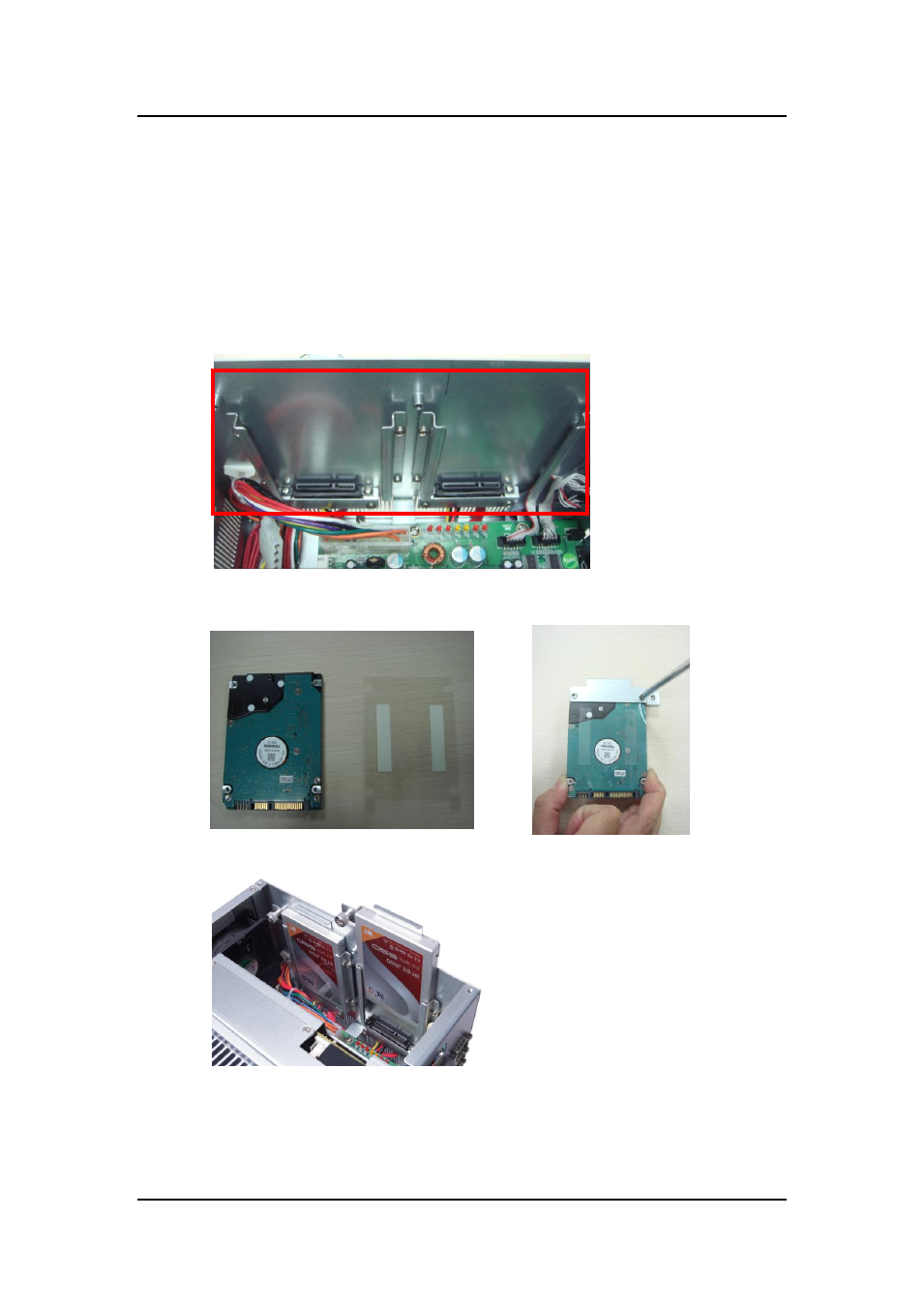

Step 4

Open the top cover and locate the Hard Disk Drives as red marked.

Step 5 There is a thermal pad and 2 x HDD brackets in th e accessory box, please

sticker the HDD Mylar before assembly the HDD with the bracket.

Step 6

Insert the HDD module into the HDD socket.

Step 7

Close the HDD top cover back to the chassis and fasten all screws.
