EEV-EX20
8 EEV-EX20 Quick Installation Guide
2.2 Jumper and Connector List
You can configure your board to match the needs of your application by setting jumpers. A
jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected by a plastic cover) that
slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,
2, and 3. In this case, you would connect either two pins.

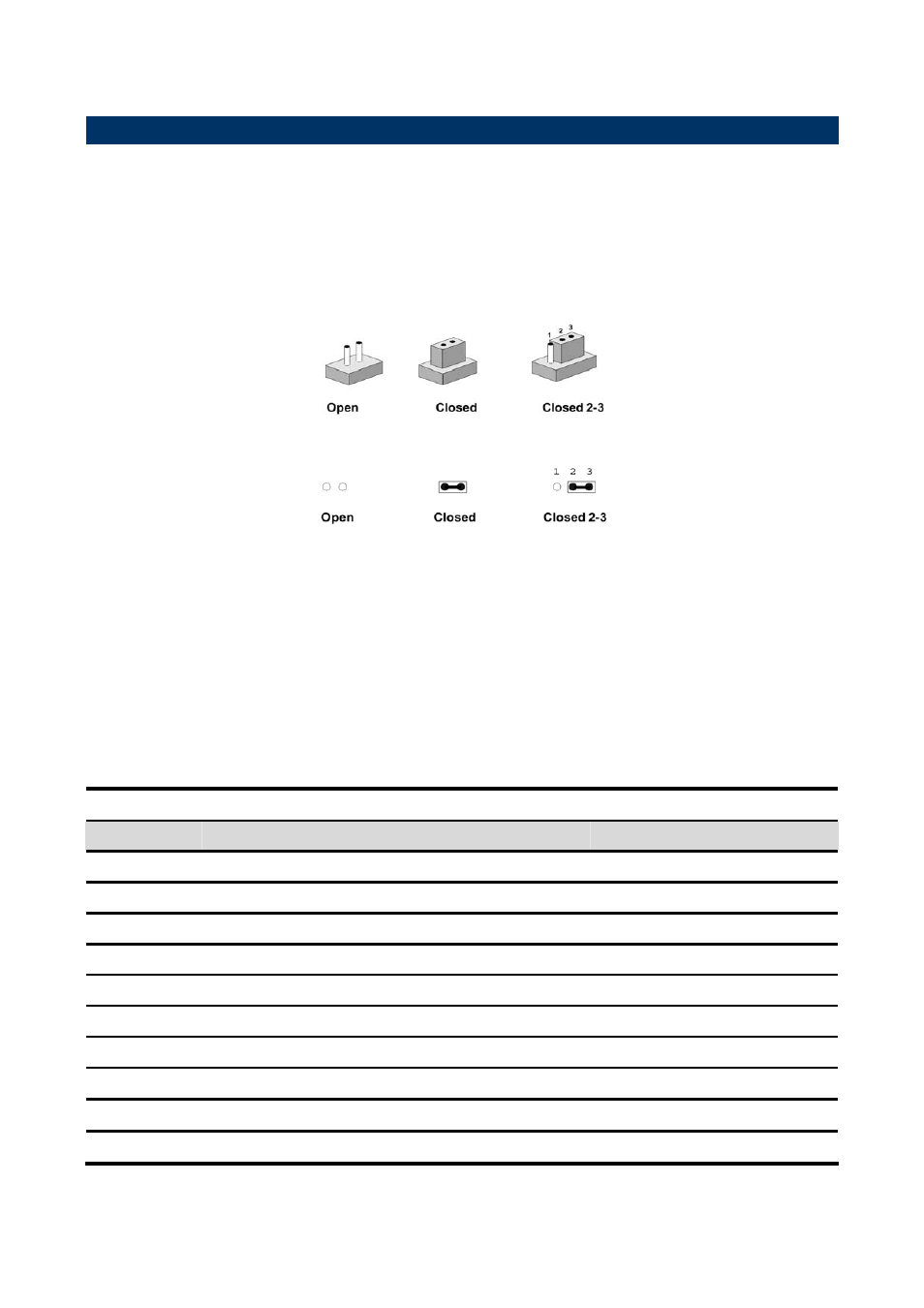

The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
Connectors on the board are linked to external devices such as hard disk drives, a
keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to
configure your system to suit your application.
If you have any doubts about the best hardware configuration for your application, contact
your local distributor or sales representative before you make any changes.
The following tables list the function of each of the board's jumpers and connectors.
Jumpers
Label Function Note
J1 Module Codec MIC mode select 3 x 1 header, pitch 2.0mm
JFP1 Miscellaneous setting connector 13 x 2 header, pitch 2.54mm
JP1 JCOM2 in RS-232/422/485 mode select 3 x 2 header, pitch 2.54mm
JP2 Module LPT/ FLOPPY Mode Select 3 x 1 header, pitch 2.54mm
JP3 Audio Codec select 3 x 1 header, pitch 2.54mm
JP4 Clear CMOS 3 x 1 header, pitch 2.54mm
JP5 Auto power on enable 2 x 1 header, pitch 2.54mm
JP6 Carrier board audio power connector 2 x 1 header, pitch 2.54mm
JP7 AT/ ATX mode select 2 x 1 header, pitch 2.54mm
JRI1 JCOM2 pin 9 signal select 3 x 2 header, pitch 2.54mm
