Avalue EEV-EX20 User Manual
Page 23
Quick Installation Guide
EEV-EX20 Quick Installation Guide 23
2.3.21

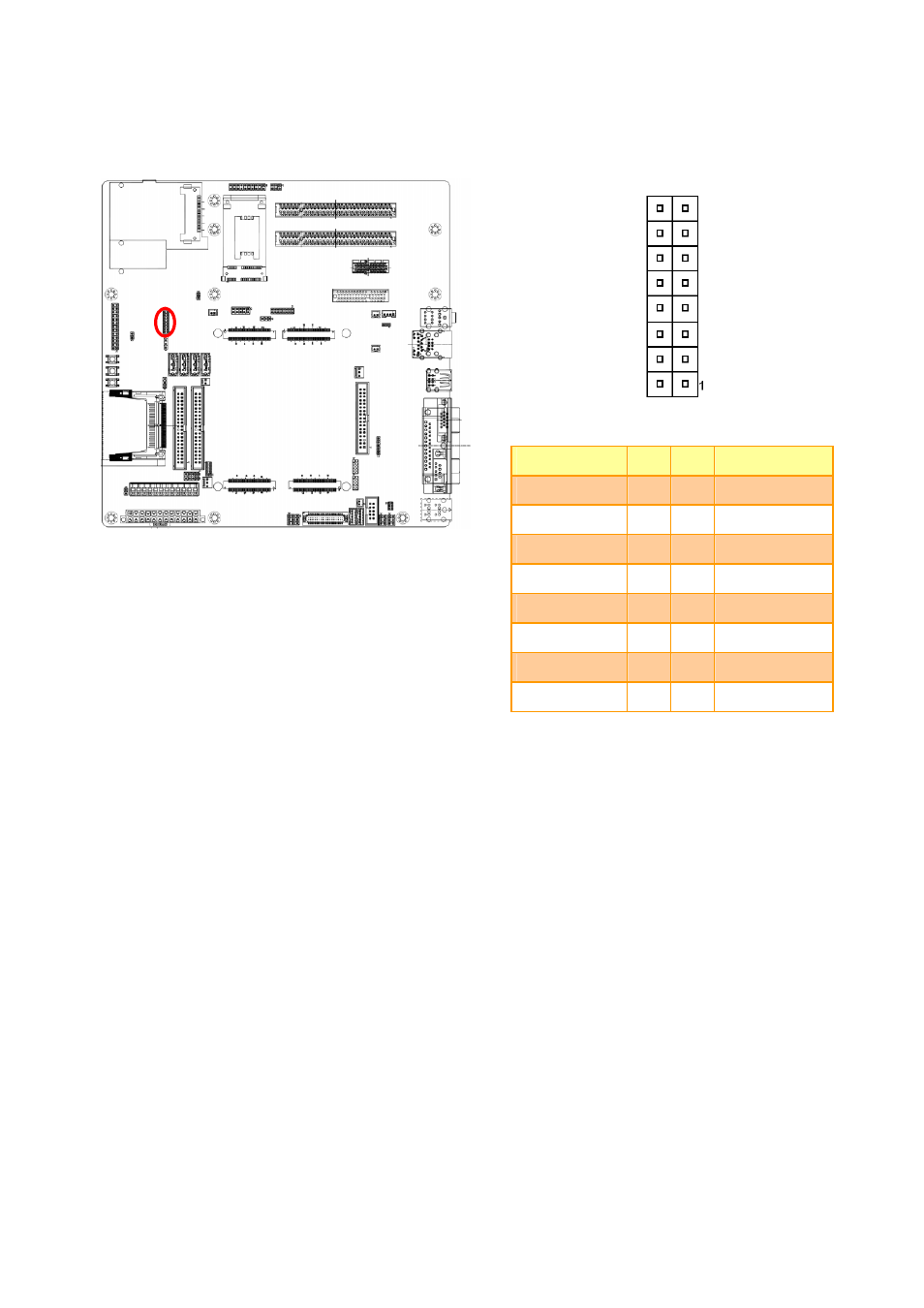

(Carrier board codec) Audio connector (JAUDIO1)
Signal
PIN PIN
Signal
SIDE_OUT_L
16
15
SIDE_OUT_R
SUR_OUT_L
14 13 SUR_OUT_R
CEN_OUT
12
11
LFE_OUT
SENSEB 10
9 SENSEA
MIC_REF
8
7
MIC_IN
LINEIN_L 6 5 LINEIN_R
GND
4
3
GND
LINEOUT_L 2 1 LINEOUT_R
