Quick Installation Guide

EEV-EX20 Quick Installation Guide 29

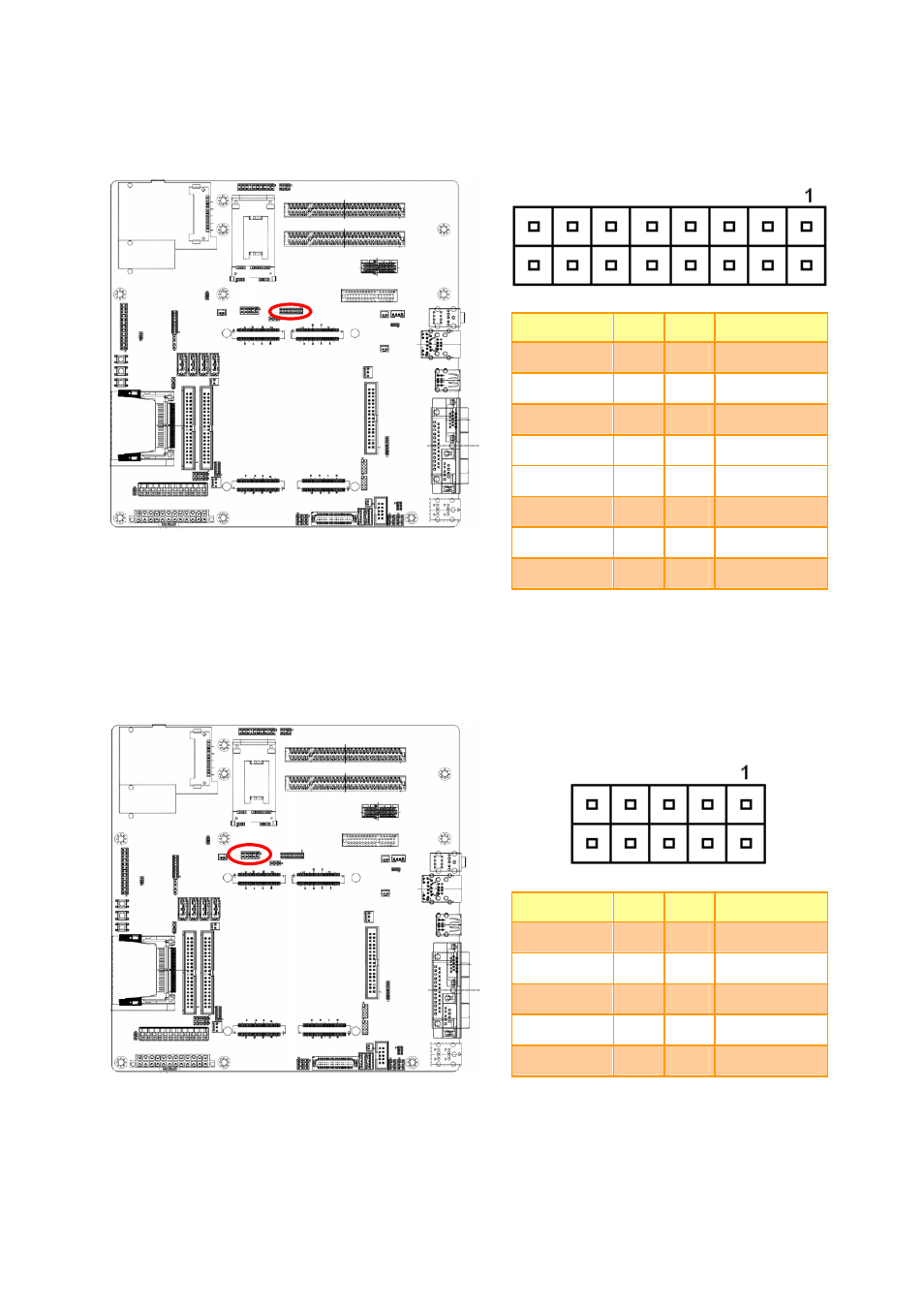

2.3.30

LPC Connector (JLPC1)

Signal

PIN

PIN

Signal

LPC_AD0

1

2

+3.3V

LPC_AD1 3 4 PCI_RST#_P

LPC_AD2

5

6

LPC_FRAME#

LPC_AD3 7 8 PCICLK3

SERIRQ 9 10 GND

LPC_DRQ0#

11

12

LPC_DRQ1#

+5V 13

14 GND

VCCSB

15

16

GND

2.3.31

USB Connector 4 & 5 (JUSB1)

Signal

PIN

PIN

Signal

USBVCC4

1

2

GND

USB_N4 3 4

GND

USB_P4

5

6

USB_P5

GND 7

8

USB_N5

GND

9

10

USBVCC5
