Avalue EEV-EX20 User Manual
Page 32
EEV-EX20
32 EEV-EX20 Quick Installation Guide

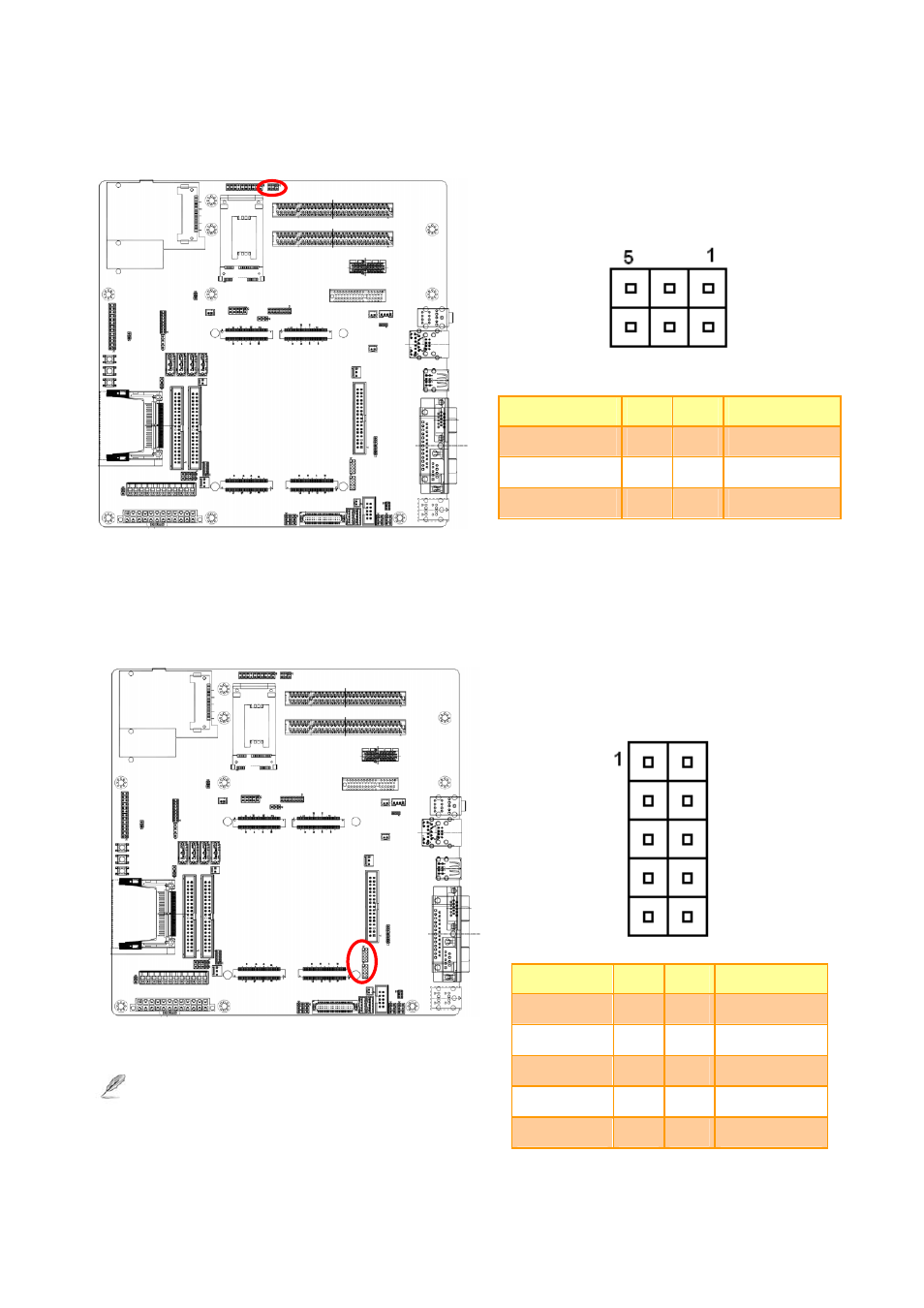

2.3.34
LED Connector (WLED1)
Signal
PIN
PIN
Signal
LED_WWAN +
1
2
LED_WWAN -
LED_WLAN +
3
4
LED_WLAN-
LED_WPAN+
5
6
LED_WPAN-
2.3.35
Serial port 1/ 2 connector (TTL1/ TTL2)
Note:
The signal level on TTL1 and TTL2 are TTL level (without
RS232 Transceivers).
Signal
PIN
PIN
Signal
-DCD
1
2
RX
TX 3
4 -DTR
GND
5
6
-DSR
-RTS 7
8 -CTS
-RI
9
10
5V
