30 EEV-EX20 Quick Installation Guide

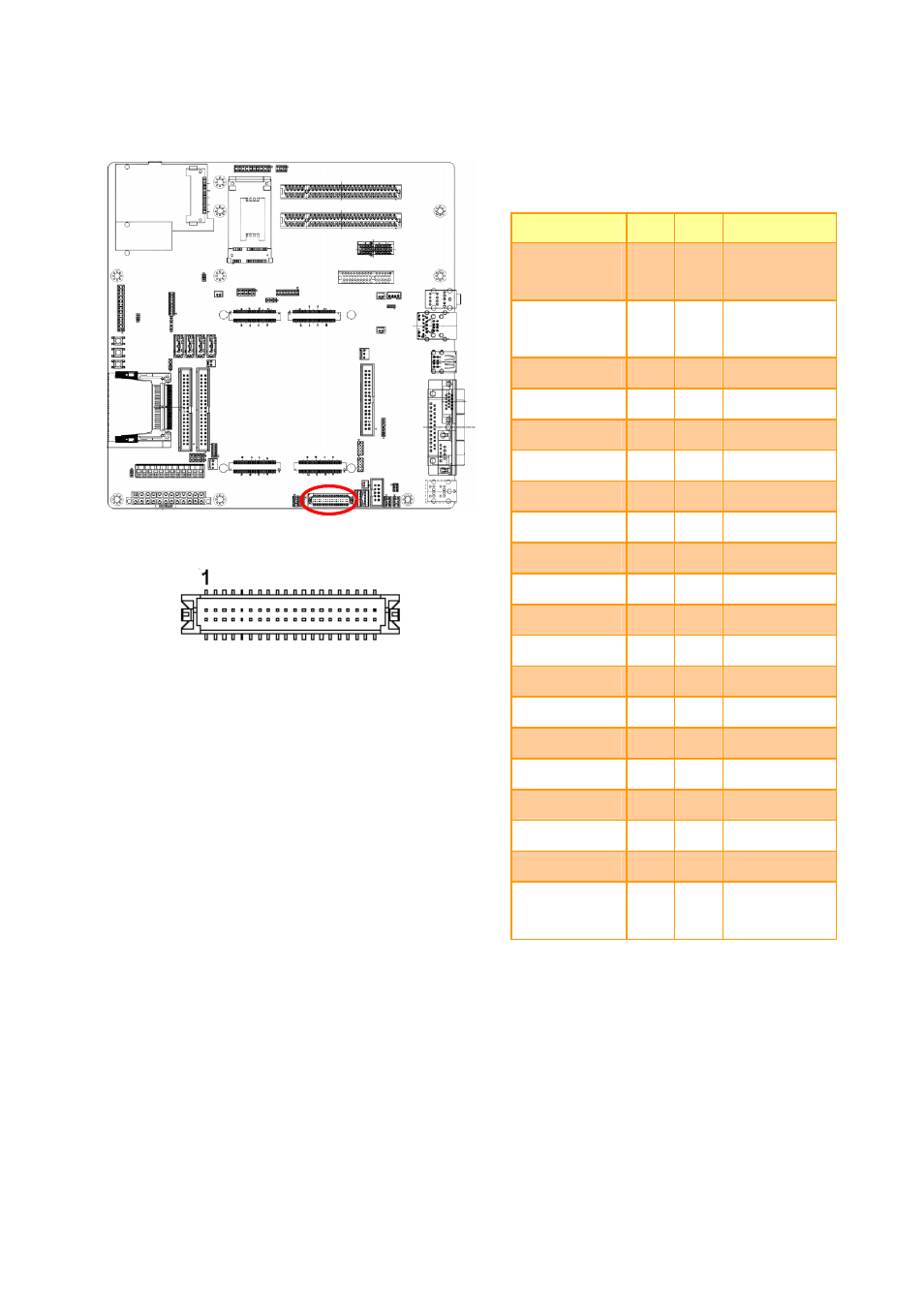

2.3.32 LVDS connector (JLVDS1)
Signal PIN PIN Signal
+3.3V
(max. 2A)
1 2
+5V
(max. 2A)
+3.3V
(max. 2A)
3 4
+5V
(max. 2A)
SPCLK 5 6 SPDATA
GND 7 8 GND
YA1P 9 10 YA0P
YA1M 11 12 YA0M
GND 13 14 GND
YA3P 15 16 YA2P
YA3M 17 18 YA2M
GND 19 20 GND
YA5P 21 22 YA6P
YA5M 23 24 YA6M
GND 25 26 GND
YA7P 27 28 YA8P
YA7M 29 30 YA8M
GND 31 32 GND
CLK2P 33 34 CLK1P
CLK2M 35 36 CLK1M
GND 37 38 GND
+12V
(max. 2A)
39 40
+12V
(max. 2A)
