Quick Installation Guide
EEV-EX20 Quick Installation Guide 31

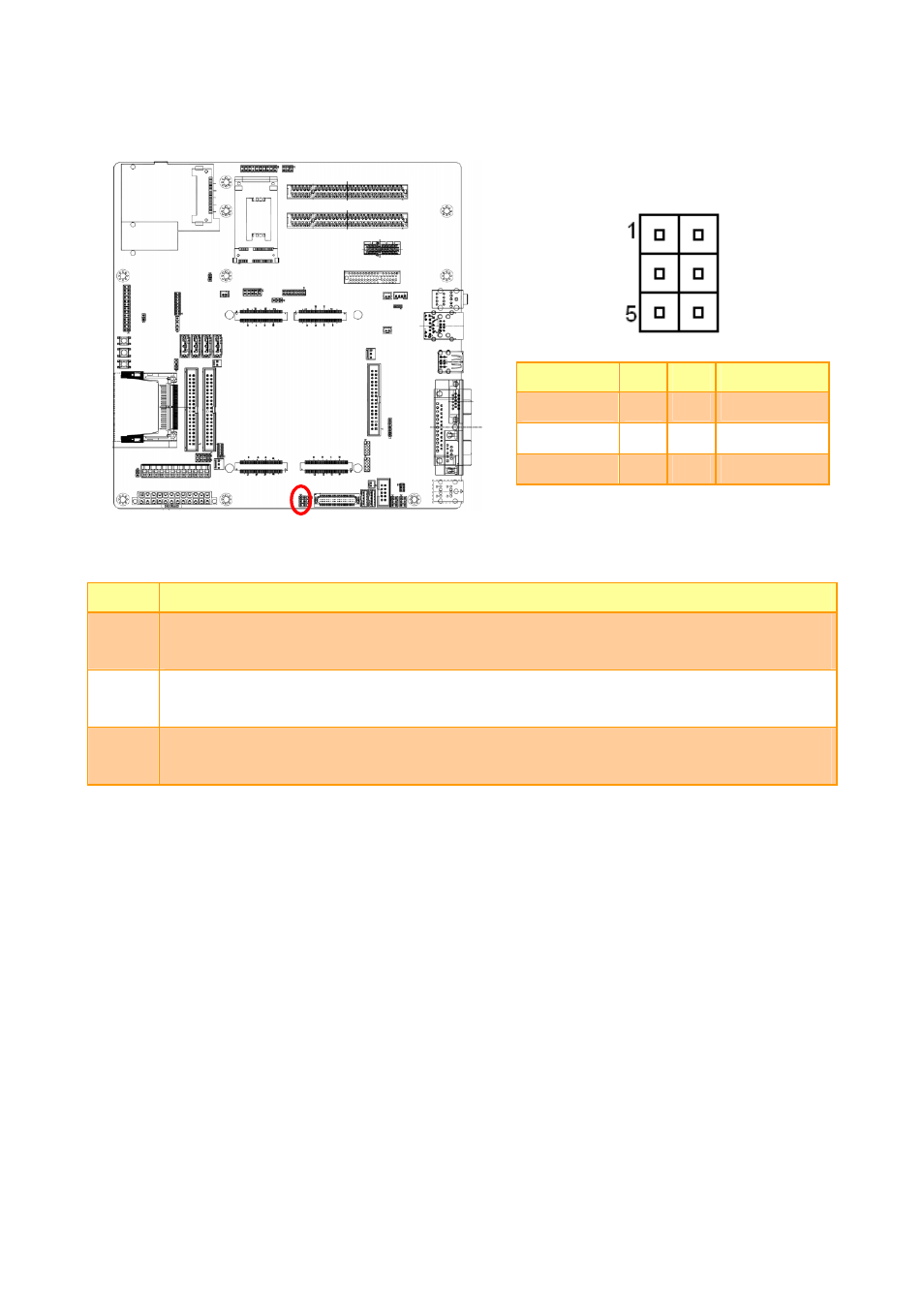

2.3.33 TV Out Connector (JTV1)
Signal PIN PIN Signal
CVBS_OUT 1 2 GND
Y_OUT 3 4 C_OUT
GND 5 6 GND
2.3.33.1 Signal Description – TV Out Connecter (JTV1)
Signal Description
Pb
TVDAC Channel A Output: supports CVBS signal of Composite; Chrominance (Pb) analog signal
of Component.
Y
TVDAC Channel B Output: supports Luminance signal of S-Video; Luminance (Y) analog signal
of Component.
Pr
TVDAC Channel C Output: supports Chrominance analog signal of S-Video; Chrominance (Pr)
analog signal of Component.
