12 EEV-EX20 Quick Installation Guide
Note: When switch to “Ring”, the signal only works in RS-232 mode.

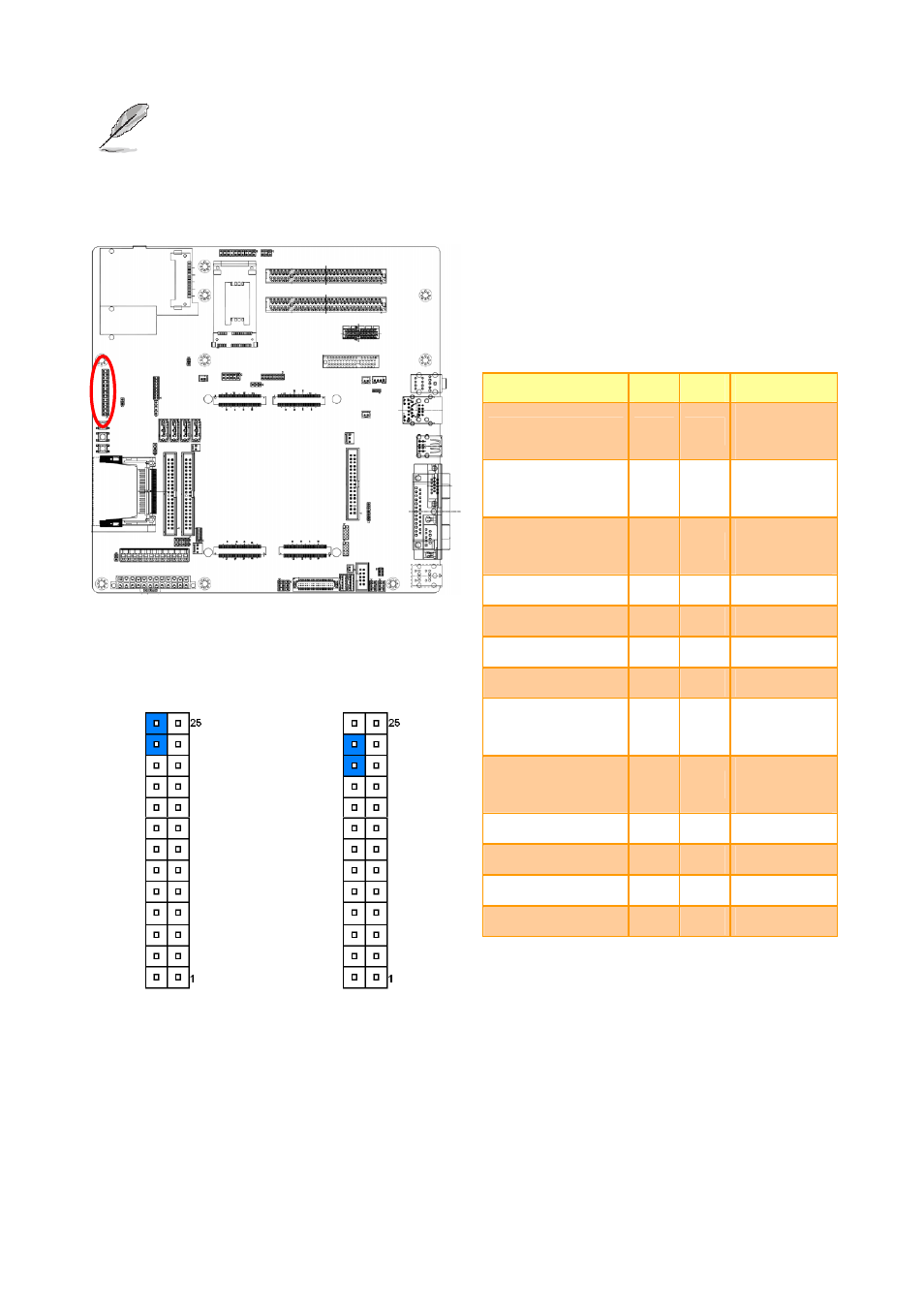

2.3.3 Miscellaneous setting connector (JFP1)
*Default
Master* Slave
Signal PIN PIN Signal
CF Set 26 25
LVDS
BRIGHT
CF Set 24 23
LVDS
BRIGHT
CF Set 22 21
LVDS
BRIGHT
NC 20 19 NC
NC 18 17 NC
External SPEAK 16 15 KB LOCK-
External SPEAK 14 13 KB LOCK+
Suspend LED- 12 11
POWER
BUTTON-
Suspend LED+ 10 9
POWER
BUTTON+
POWER ON LED- 8 7 IDE LED-
POWER ON LED+ 6 5 IDE LED+
STANDBY LED- 4 3 RESET
STANDBY LED+ 2 1 RESET
