22 EEV-EX20 Quick Installation Guide

2.3.19

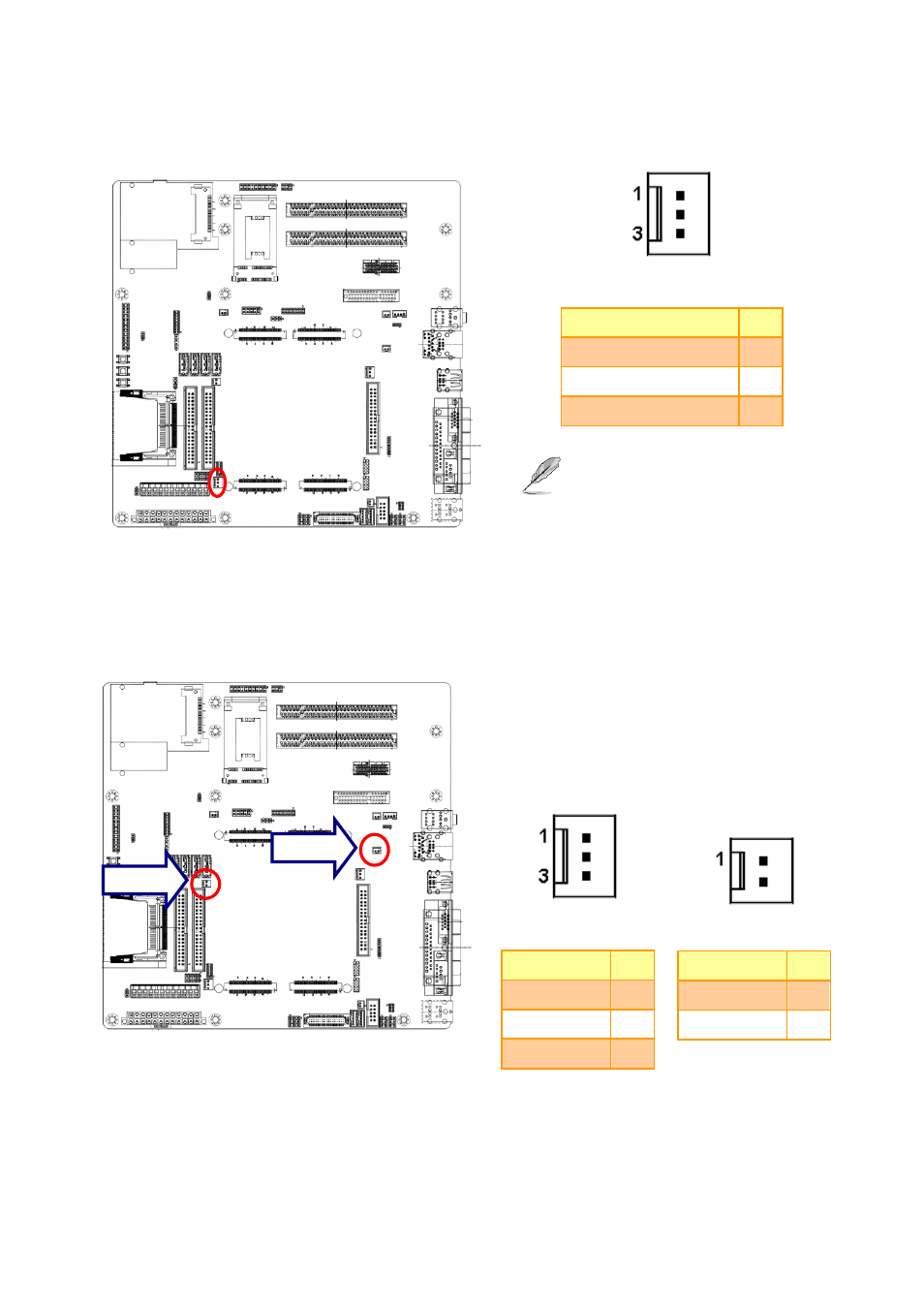

CPU fan connector (CPUFAN1)

Signal

PIN

GND

1

Fan power (Max. +12V)

2

Fan Tachomater Input

3

Note:

The CPU Fan speed could be controlled by

module via FAN_PWMOUT (XTX X2 Pin-92)

signal.

2.3.20

System fan connector (FAN1/ FAN2)

FAN1

Signal

PIN

GND

1

+12V 2

NC

3

FAN2

Signal

PIN

GND

1

+5V 2

FAN2

FAN1
