User’s Manual
EBM-CX700 Series User’s Manual
27
•

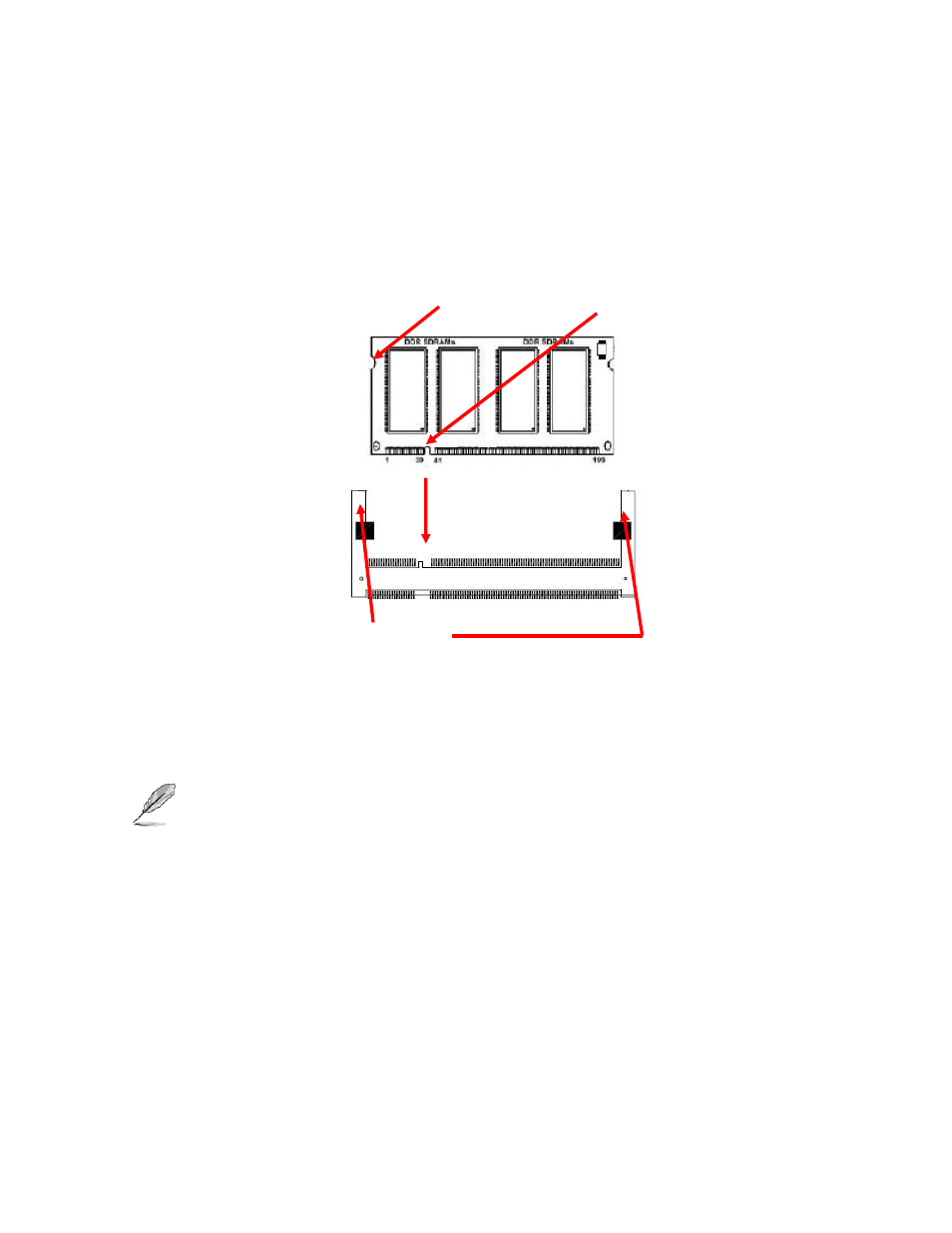

Locate the SODIMM socket on the board.
•
Hold two edges of the SODIMM module carefully. Keep away of touching its
connectors.
•
Align the notch key on the module with the rib on the slot.
•
Firmly press the modules into the socket automatically snaps into the mounting notch.
Do not force the SODIMM module in with extra force as the SODIMM module only fit
in one direction.
•
To remove the SODIMM modules, push the two ejector tabs on the slot outward
simultaneously, and then pull out the SODIMM module.
Note:
(1) Please do not change any DDR2 SDRAM parameter in BIOS setup to
increase your system’s performance without acquiring technical
information in advance.
(2) Static electricity can damage the electronic components of the computer
or optional boards. Before starting these procedures, ensure that you
are discharged of static electricity by touching a grounded metal object
briefly.
Mounting Notch
Notch Key
Ejector
200-pin DDR2 SODIMM
