2.2 Installation Procedure
This chapter explains you the instructions of how to setup your system.
1. Turn off the power supply.
2. Insert the SODIMM module (be careful with the orientation).
3. Insert all external cables for hard disk, floppy, keyboard, mouse, USB etc. except for flat
panel. A CRT monitor must be connected in order to change CMOS settings to support
flat panel.
4. Connect power supply to the board via the PW1.
5. Turn on the power.
6. Enter the BIOS setup by pressing the delete key during boot up. Use the “LOAD BIOS
DEFAULTS” feature. The Integrated Peripheral Setup and the Standard CMOS Setup
Window must be entered and configured correctly to match the particular system
configuration.
7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before
connecting the display cable and turning on the power.
2.2.1 Main Memory
EBM-CX700 series provides one 200-pin SODIMM sockets to support DDR2 SDRAM. The
maximum memory size is 1GB.

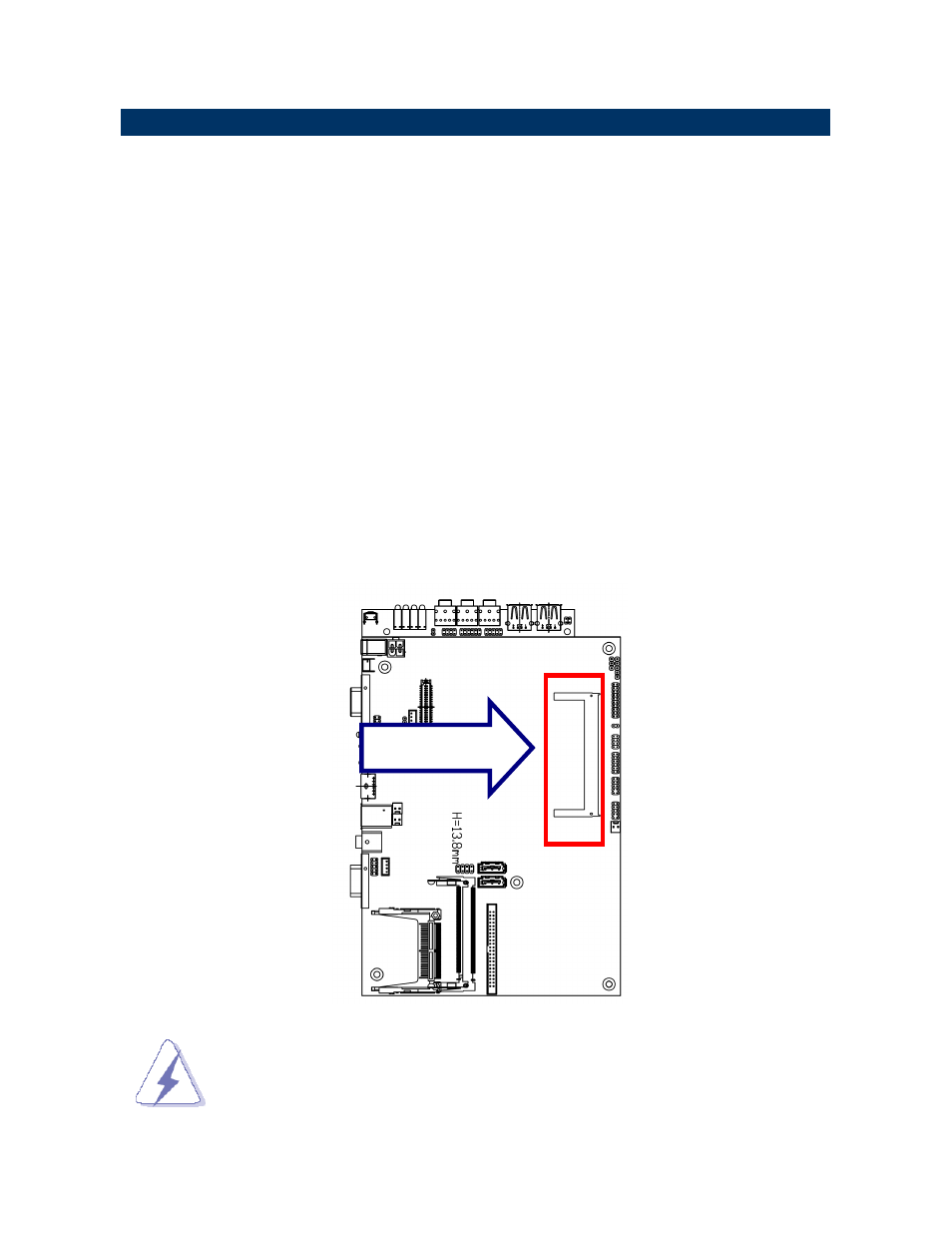

(Rear Side)
Make sure to unplug the power supply before adding or removing SODIMM or
other system components. Failure to do so may cause severe damage to
both the board and the components.
SODIMM1
