ECM-PNV

30 ECM-PNV User

’s Manual

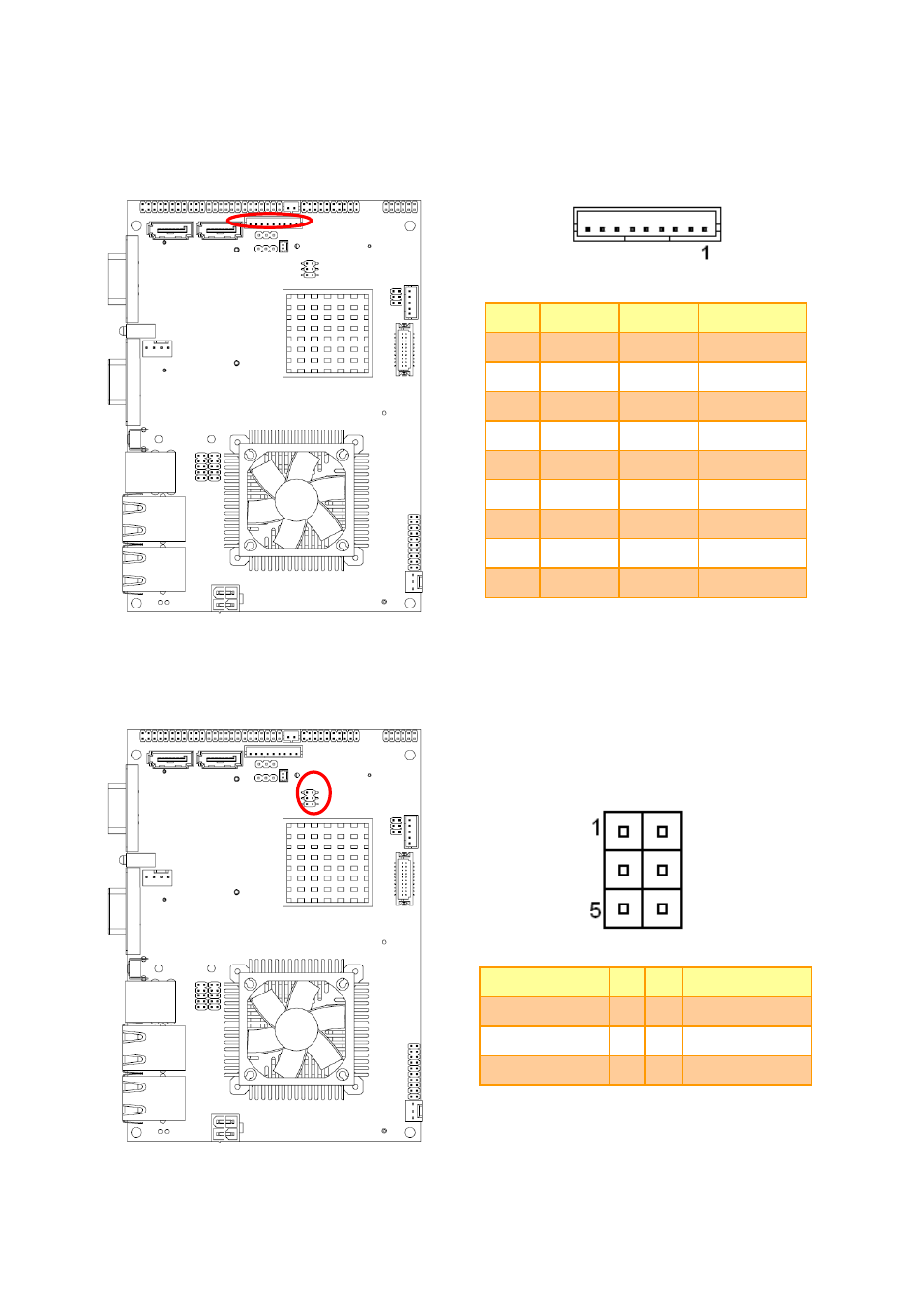

2.4.13 Touch panel connector (JTOUCH)

PIN

4-WIRE

5-WIRE

8-WIRE

1

N/A

N/A

Right Sense

2

N/A

N/A

Left Sense

3

N/A

N/A

Bottom Sense

4

N/A

Sense

Top Sense

5

Right

LR

Right Excite

6

Left

LL

Left Excite

7

Bottom

UR

Bottom Excite

8

Top

UL

Top Excite

9

GND

GND

GND

2.4.14 SPI connector (JSPI)

Signal

PIN PIN

Signal

VSPI

1

2

GND

SPICE#

3

4

SPISCK

SPISO

5

6

SPISI
