ECM-PNV

22 ECM-PNV User

’s Manual

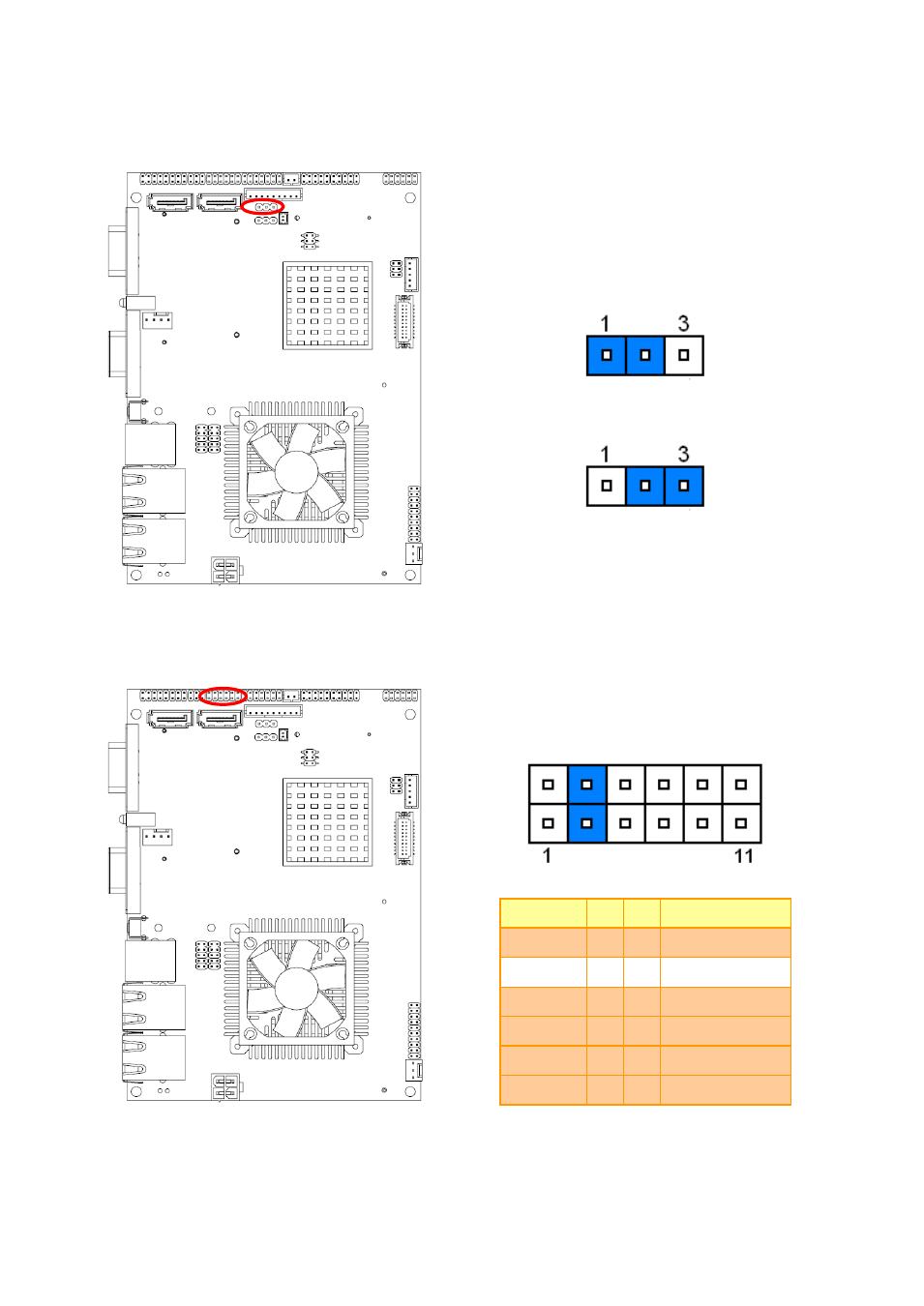

2.4.3 Touch panel mode select (JTOUCH_SEL)

* Default

4/ 8W

5W*

2.4.4 Miscellaneous setting connector (JFP)

* Default

*

Signal

PIN PIN

Signal

PWRBTN#

1

2

GND

PWRBTN#

3

4

AUTO_PWR_ON

VCC

5

6

GND

HD_ACT#

7

8

VCC3

VCC

9

10

GND

COPEN#

11

12

GND
