User ’s Manual
ECM-PNV User ’s Manual 17
2.2.1 Main Memory
ECM-PNV provides one 204-pin SODIMM socket support up to DDR3 800 SDRAM. The
total maximum memory size is 2GB.

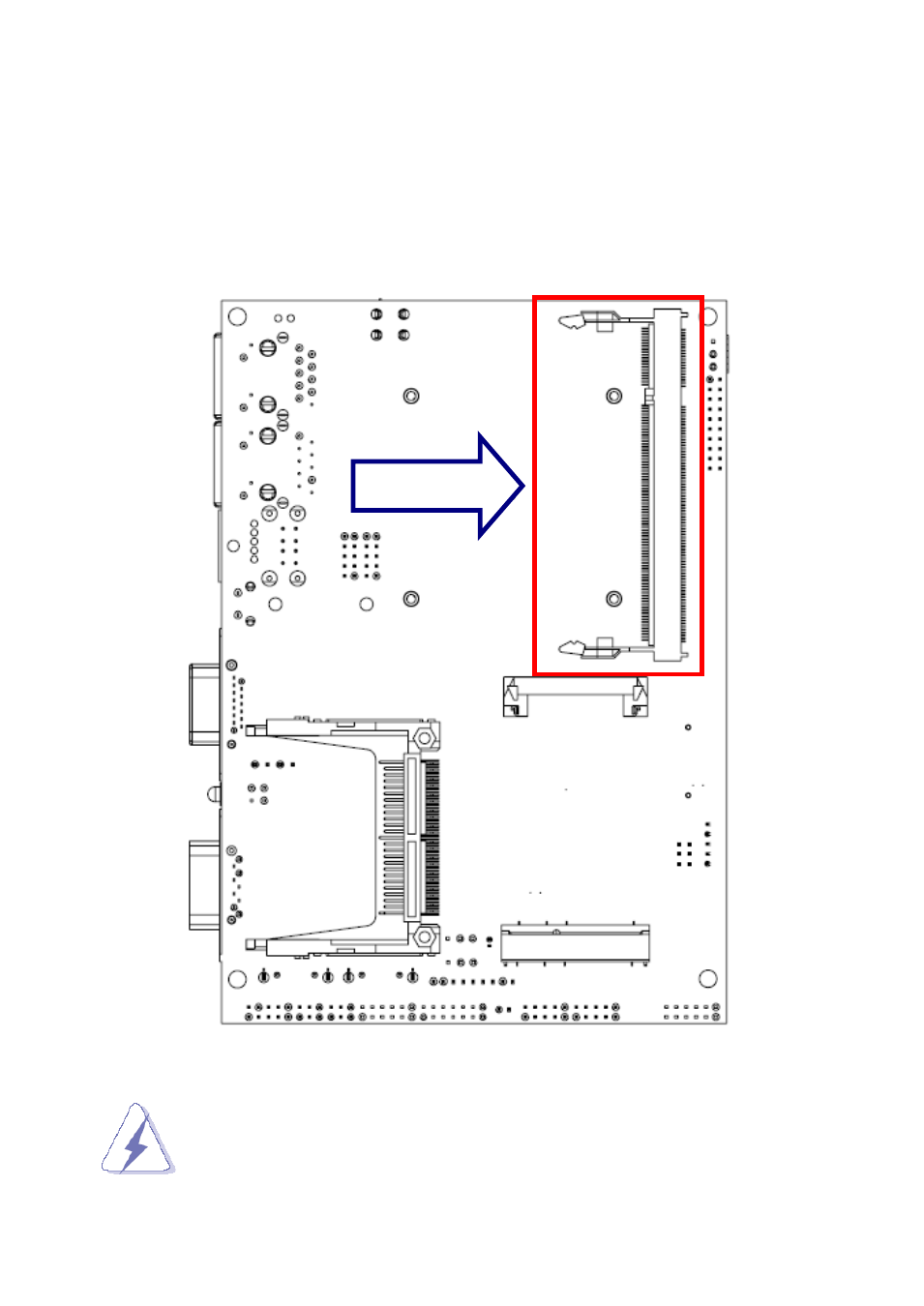

(Rear side)
Make sure to unplug the power supply before adding or removing SODIMMs
or other system components. Failure to do so may cause severe damage to
both the board and the components.
SODIMM
