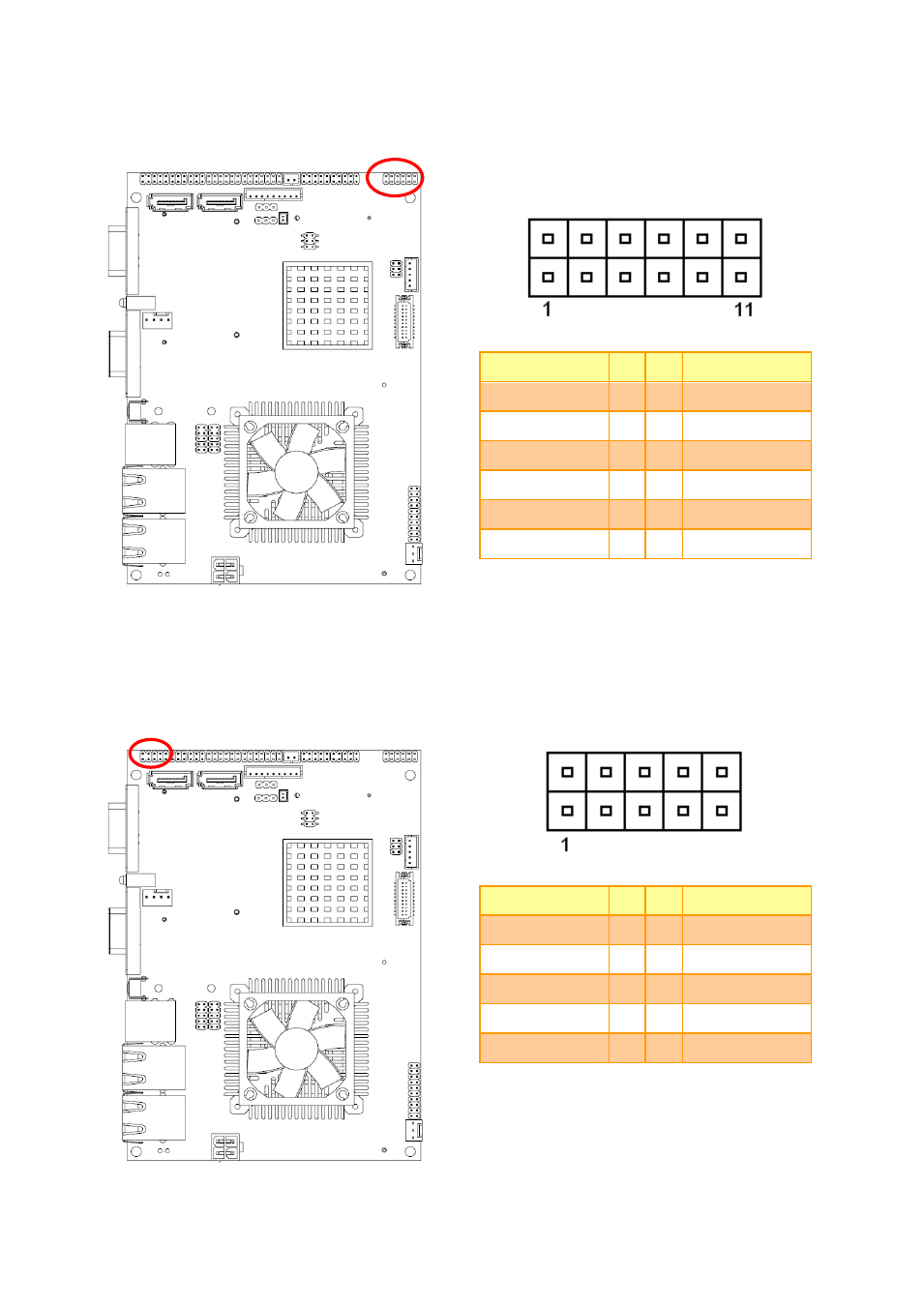

2.4.10 Audio connector (JAUDIO)

Signal

PIN PIN

Signal

LINEOUT_R

1

2

LINEOUT_L

GND

3

4

GND

LINEIN_R

5

6

LINEIN_L

MIC-R

7

8

MIC-L

FRONT-JD

9

10

LINE1-JD

MIC1-JD

11

12

GND

2.4.11 Serial port 2 connector (JCOM2)

Signal

PIN PIN

Signal

DCD2

1

2

RxDD2

TxDD2

3

4

DTR2

GND

5

6

DSR2

RTS2

7

8

CTS2

RI2

9

10

NC
