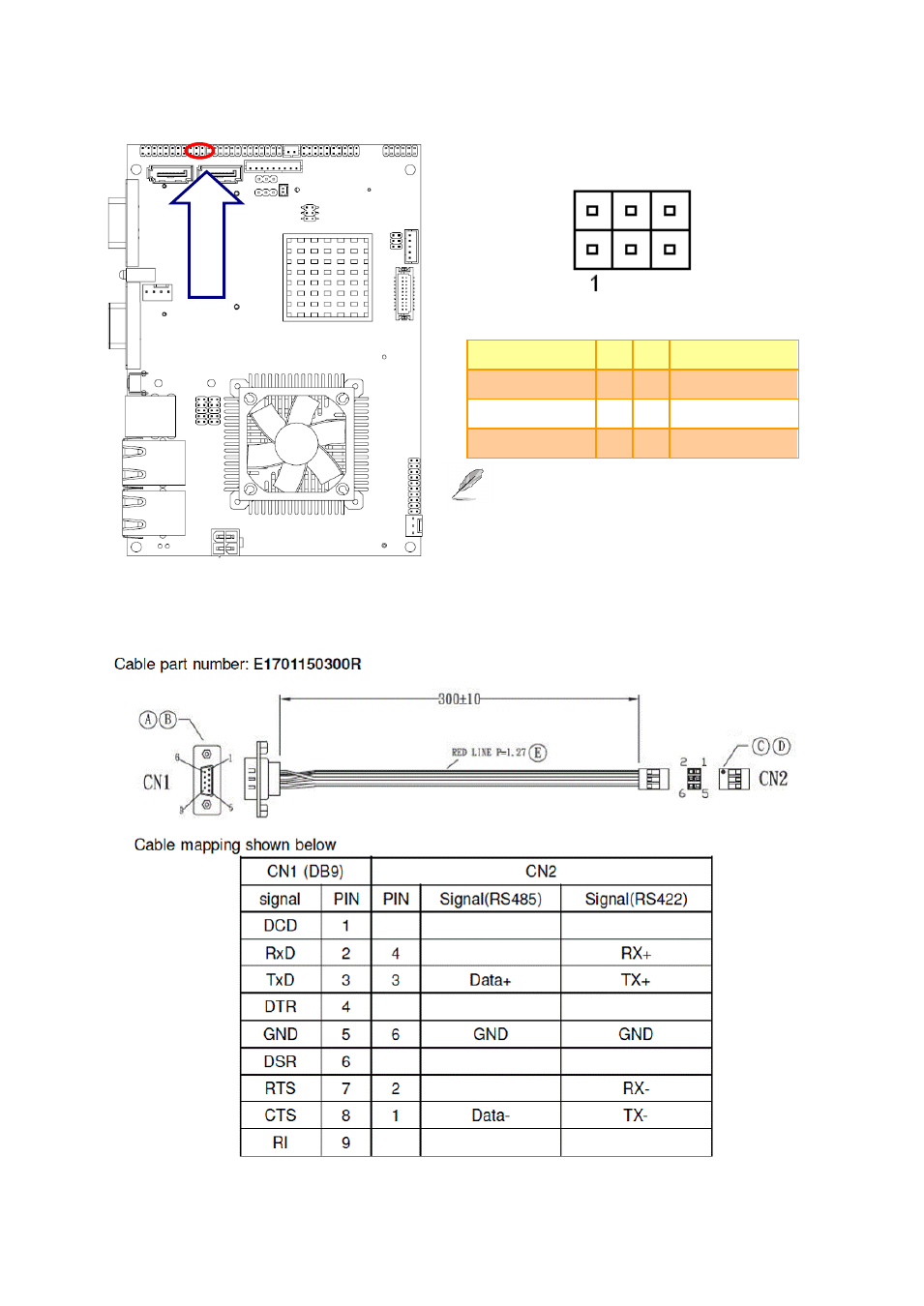

2.4.9 Serial port 2 in RS-422/485 mode (J422/485_1)
J422/485_1
Signal
PIN PIN
Signal
TX-
1
2
RX-
TX+
3
4
RX+
+5V
5
6
GND
Note:
J422/485 is available after modifying the mode
of COM2 in BIOS setting. And the wiring must changed
to E1701150300R and Connecting it to this
J422/485_1 connector.
