< 1.3 > Membrane
Power ON
■
Turn off all devices / servers and Cat5 IP serial console
■
Make sure all cables / connectors are properly connected
16 ports
Port activity Status LEDs Reset button
Power Red: Power on indication
Link Orange: 10BaseT Ethernet connection
Green: 100BaseT Ethernet connection
Ready Green: Blinking per second when system is busy
Port LED Green: Traffi c activity
Reset button Press reset button to reboot the unit

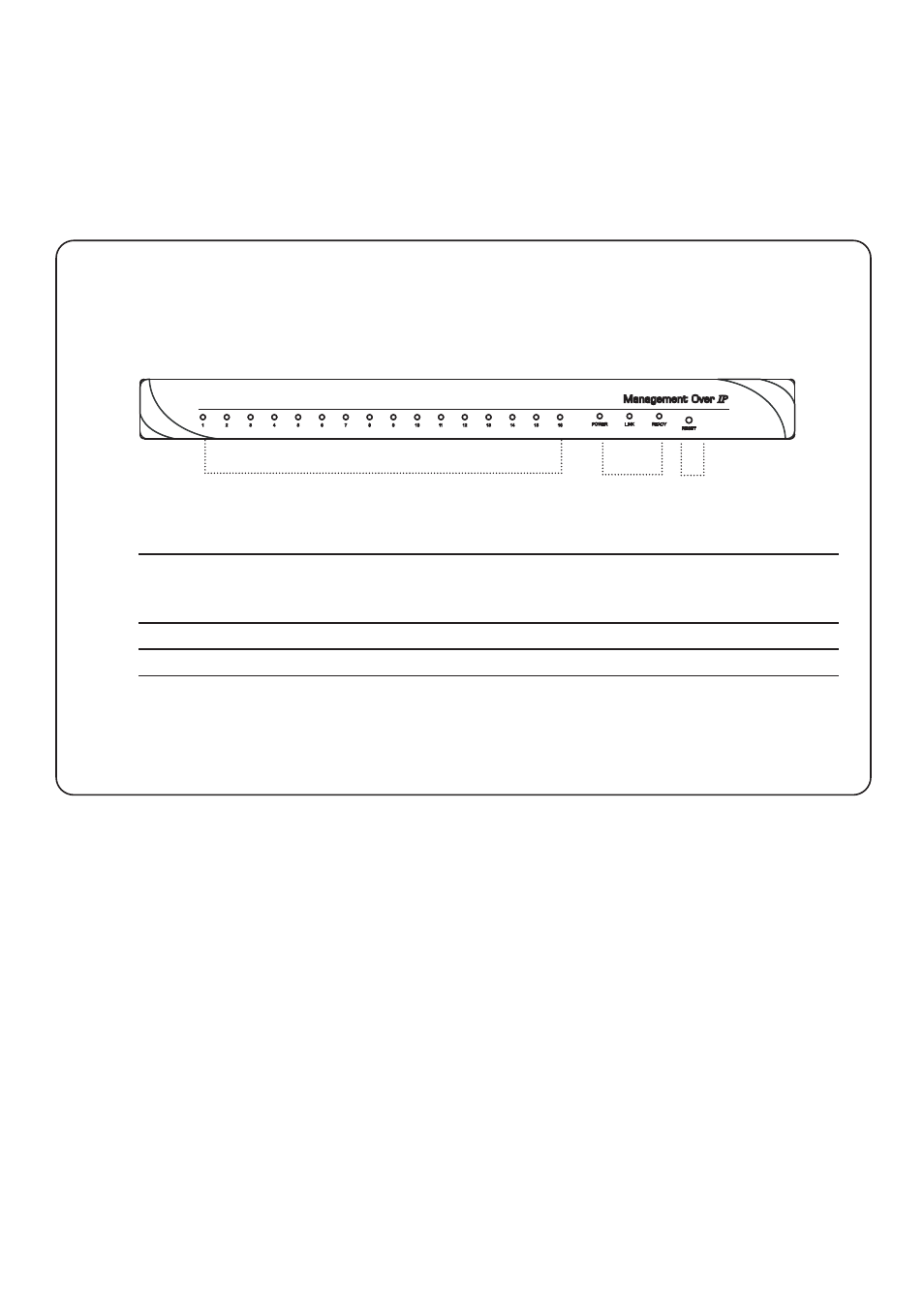

Front Panel - Port LED Indications
CS-116
