CS-116

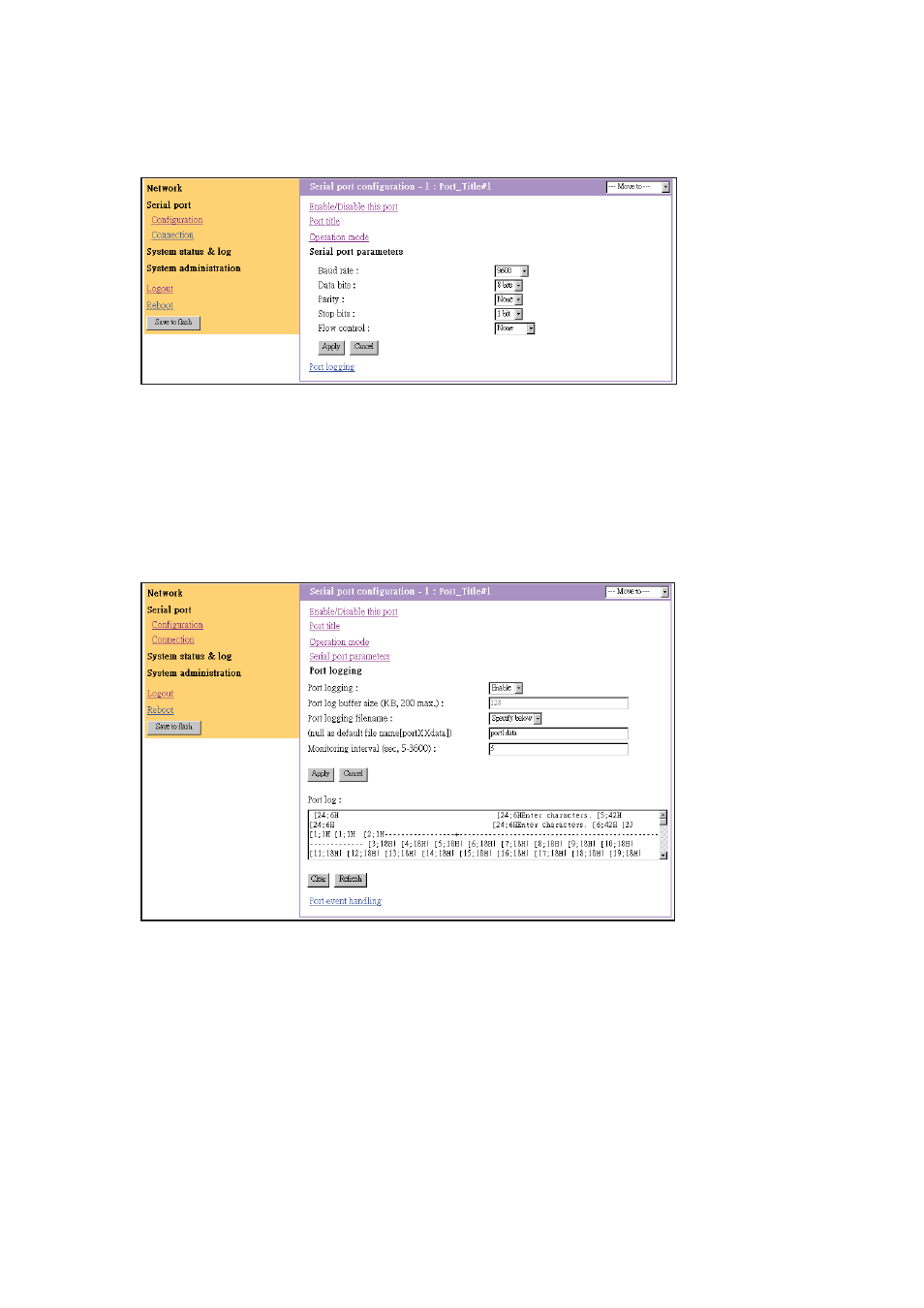

2.5.5 Serial Port Parameters
To connect the serial device to the IPCS serial port, the serial port parameters of the IP serial console should match exactly to
that of the serial device attached.
2.5.6 Port Logging
With the Port logging feature while in console server mode, the data receiving from the tracking serial port will be buffered in
IP serial console memory. The user can also define keywords for each serial port that will trigger an email notification if the
keyword is found in the logged data. This will enable the user to monitor the data from the attached device. The Port logging
feature is valid and visible only if the operation mode of the serial port is configured to console server mode.
P.16
< 2.5 > Serial Port Confi guration
