Austin Hughes CS - 116 - Manual (Page 16)

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116

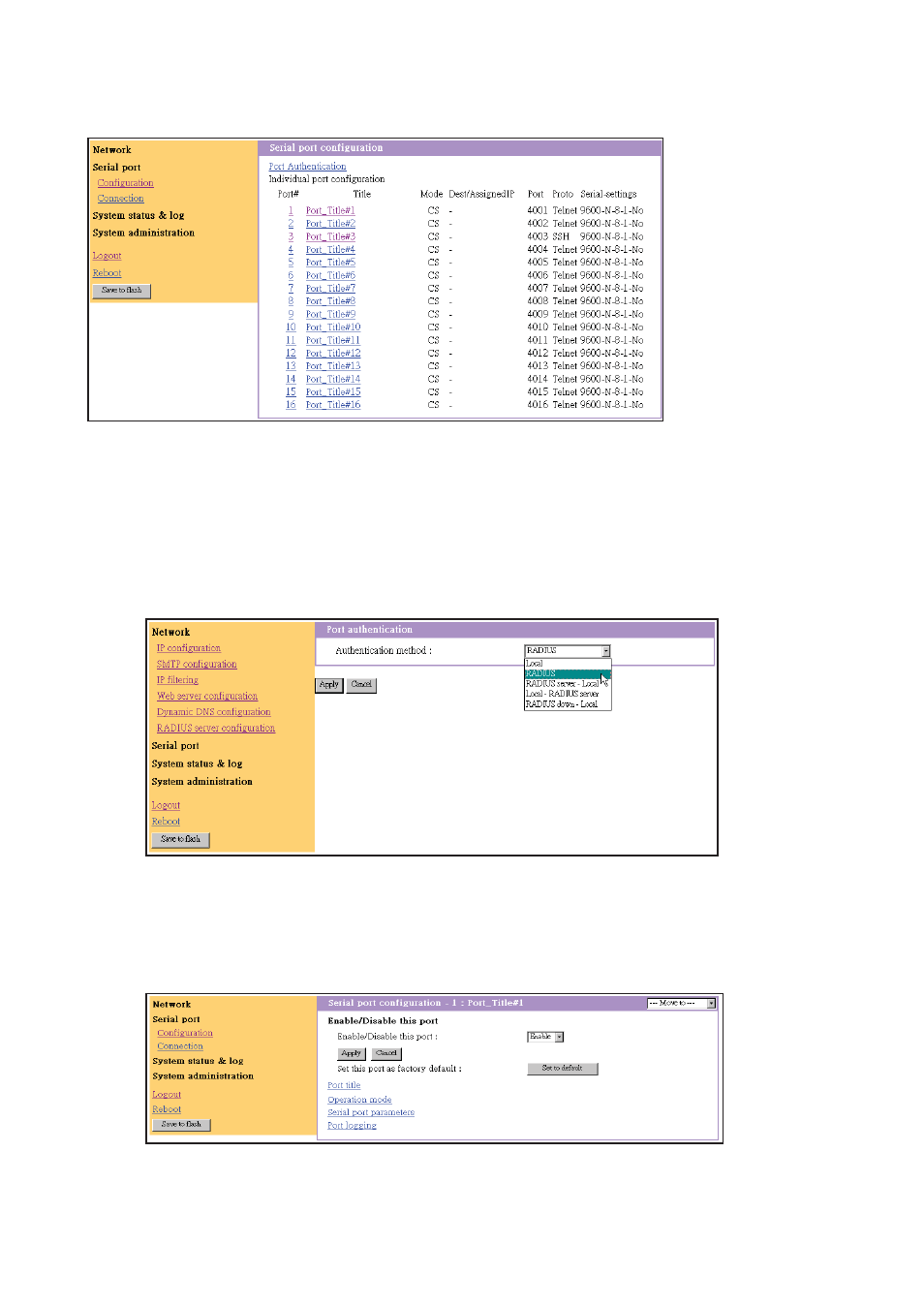

Under the Serial Port heading, click Configuration will show the list of port summary as below.
2.5.1 Port Authentication
Authentication is the process of identifying an individual, usually based on a username and password. The IP serial console
supports various authentication options, such as Local, RADIUS, to authenticate the users who access the serial port.
When the authentication is set to Local, the IP serial console will use its own user list to authenticate a user. If configured
otherwise, the IP serial console will request authentication from the external authentication servers (i.e. RADIUS) Figure below
shows conceptually the user authentication process when using an external authentication server.
2.5.2 Port Enable / Disable
Each serial port can be enabled or disabled. A disabled serial port cannot be accessed by user. User can reset the serial port to
default settings by clicking the button Set to default.
P.12
< 2.5 > Serial Port Confi guration
