Austin Hughes CS - 116 - Manual (Page 27)

UM-CV-751-CS-116-Q215V1 www.austin-hughes.com
CS-116
2.9.3 Remove User
To remove a user,
■
Check the users at the User administration screen
■
Click the button Remove
2.9.4 Edit ACL
IP serial console provides ACL (Access Control List) security function, each user may be authorized to access to certain
ports only, instead of all ports. In other words, a particular port may only allow the authorized users to access.

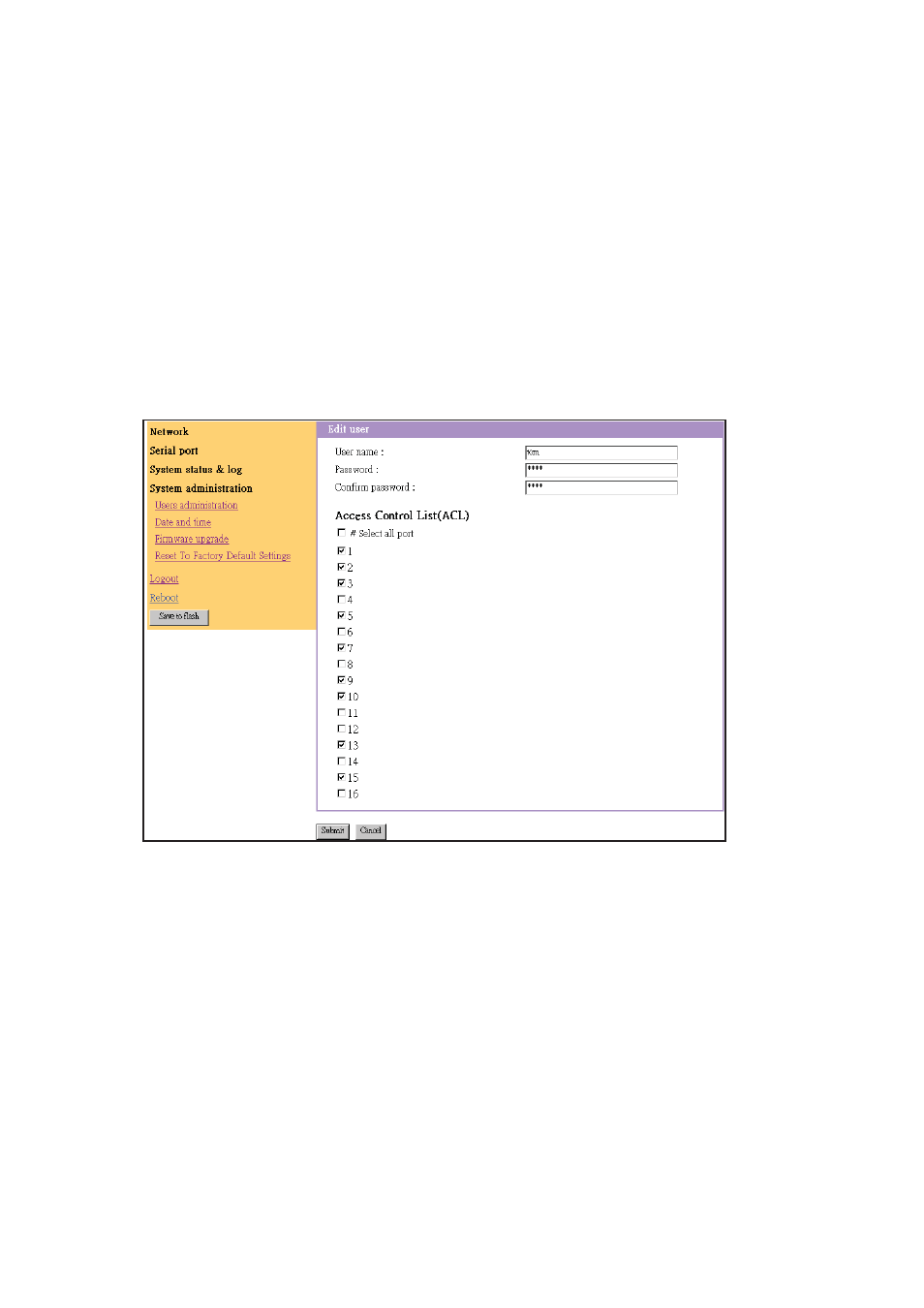

To edit the ACL,
■
Check the users at the User administration screen
■
Click the Edit icon
■
Enter user name & password
■
Select the port to access to
■
Click the button Submit
2.9.5 Change password
To change the parameters of the user account, open the edit user screen by selecting the user name at the user
administration screen and then edit the parameters of user account like adding user.
P.23
< 2.9 > System Administration
