Installation for serial console server
C
e
b
y
r
V
e
i
w
■

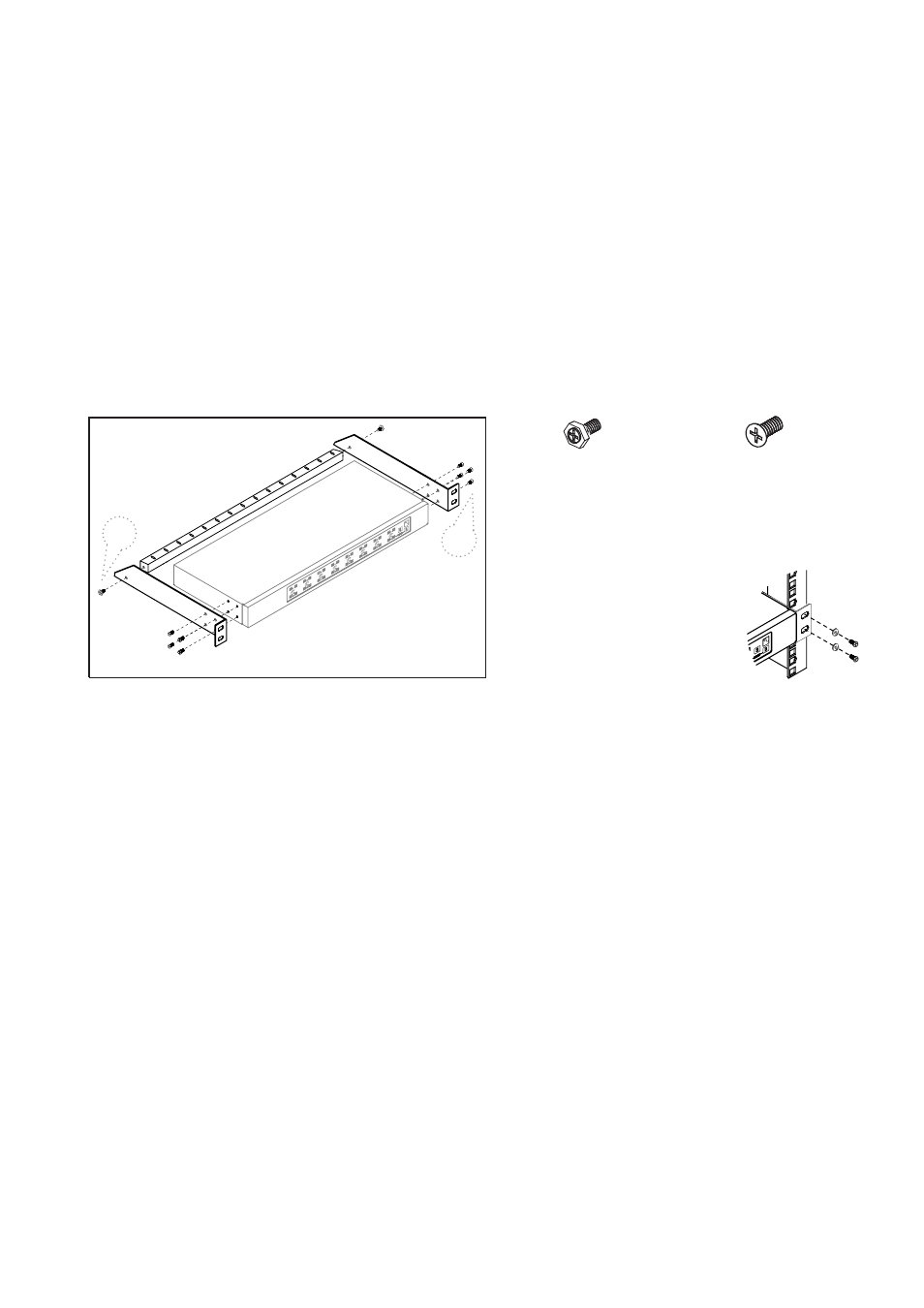

Install each bracket using screws
provided shown in Figure 1.
A
B
M3.2 x 4.5 mm
M4 x 10 mm
■
Fix the serial console server
into the rack
Figure 1.
Screw A: 2 pcs
Screw B: 8 pcs
CS-116
■
It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■
Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
