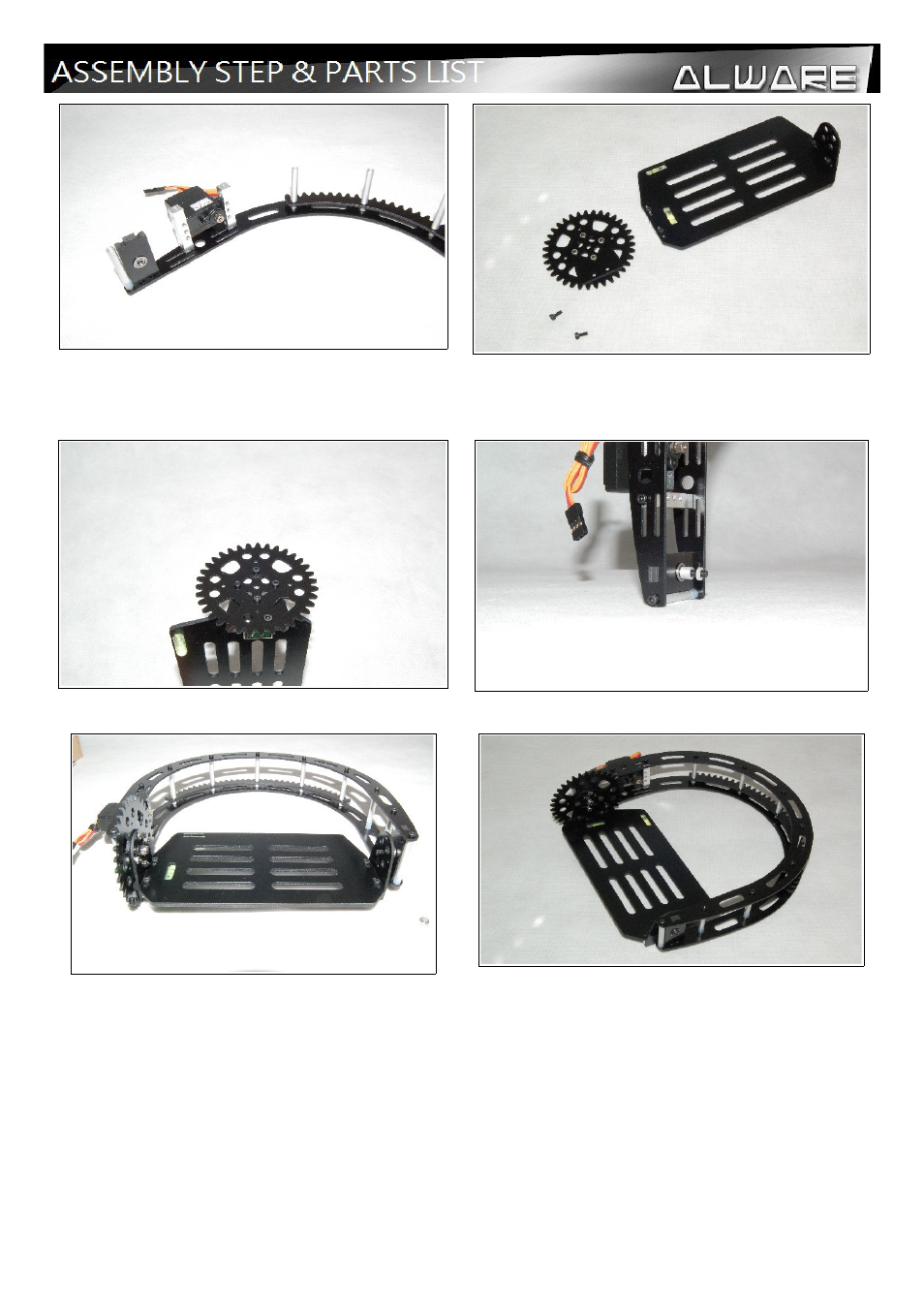

Install the Servo With Alu Square Rod 30.5mm to
the Inner Circle Frame using M2x6mm Hex Cap
Screws. Make sure the direction of servo is
correct.
For the Cam Stand Frame, install the Spur Gear to
the Vertical Mounting Frame.(Part No.: 4, 7) And
install the Gear Assembly to the Mounting Frame
using 2pcs M2.5x6mm Hex Cap Screws.
Side View. Insert M3x16mm Screw to the Bearing Mount and
followed by two collars.(Part No.: 6, 10, 11)
Secure the Cam Stand Assembly to the Inner
Circle Assembly using M3 Self-lock Nuts.(Part
No.: 5)
Complete Assembly.
