Alwarerc Eagle Pro V4 Camera 3-Axis 360D Panning Gimbal - Manual (Page 15)

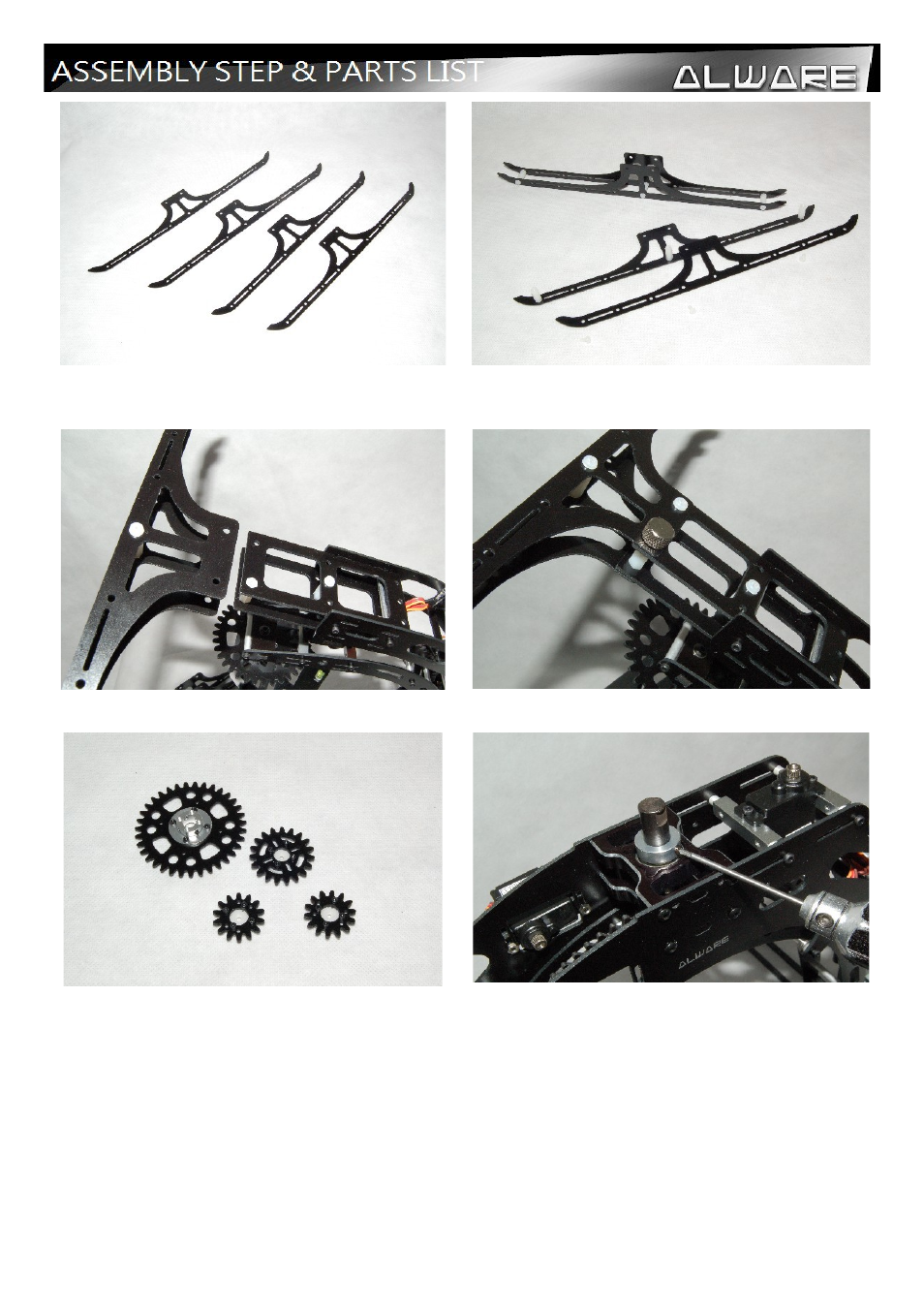

Prepare the parts as shown above. Install the Landing Gear Frame with Nylon Screw
M3x6mm and Hexagonal Nylon Rod 3x15mm.
(Part No.: 1, 4)
Connect the Landing Gear Assembly to the
Landing Gear Rib.
Connect them with Part No.: 1, 2, 3 and 5.(Same
for two Legs)
Install the Large Spur Gear with parts No. 7, 10,
12. For the other Small Gears, connect them with
the Round Servo Horns using M2x4mm screws.
(No Nut is needed, directly thread the Screw to the
Servo Horn.)(Part No.: 11)
Insert the Steel Main Shaft to the Alu Main Shaft
Block and secure it with M3 set screw.
(Part No.: 6, 8, 9)
15
