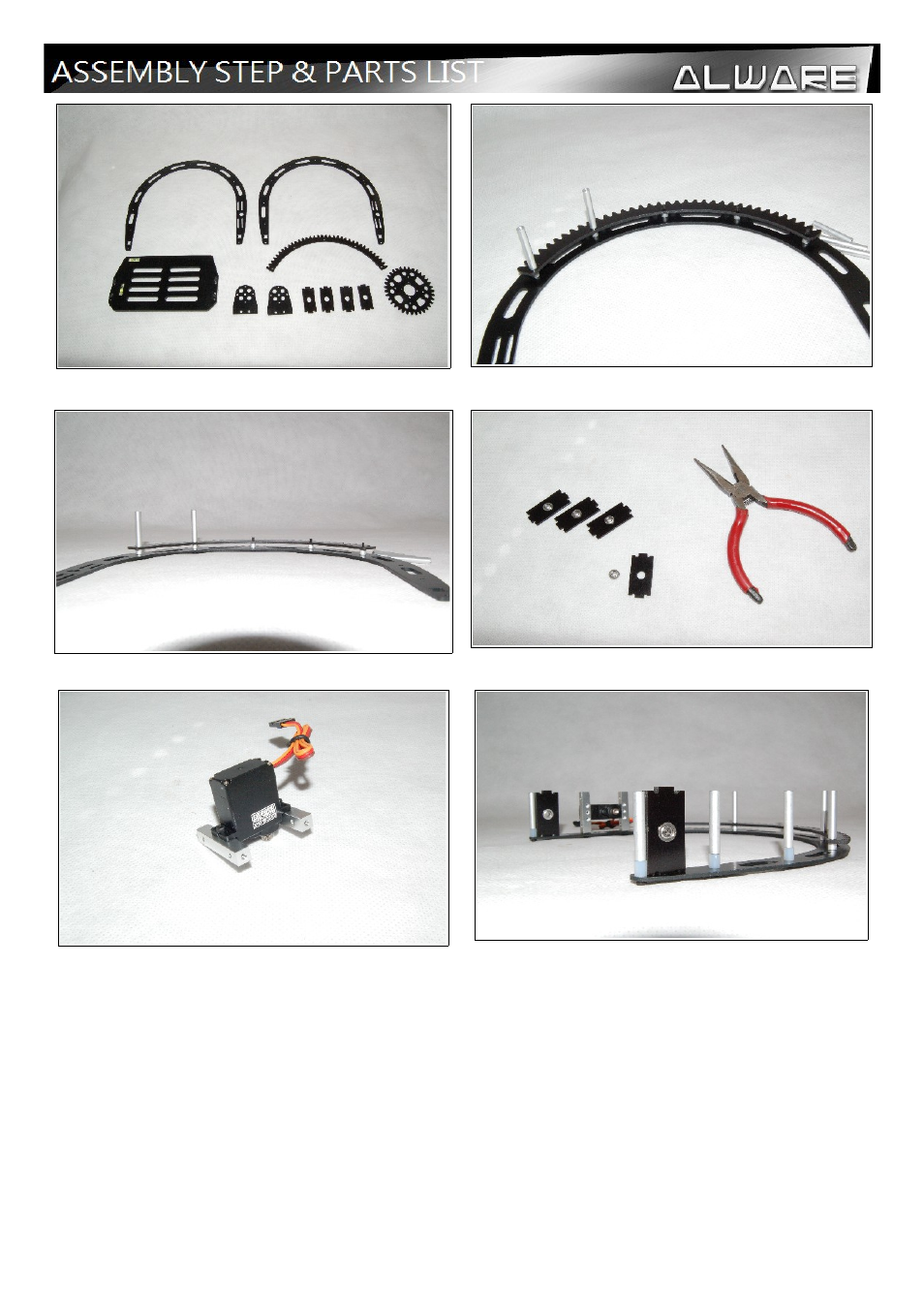

Prepare all the parts as shown on the picture.
Install the Arc Gear on the middle of the Inner
Circle Frame. (Part No.: 2, 3, 9)
From another perspective.
Insert the bearings in the Bearing Mount Frames
with the aid of Needle Nose Pliers. (Part No.: 8)
Install the servo like the picture. (Part No.: 1, 4)
Install all the parts like the picture. (Part No.: 2, 3,
4, 12)
