Steps to change for 2-Axis Mode:
(Recommended when using on RC Helicopters or if you want to reduce the weight of this Pro Camera Mount)

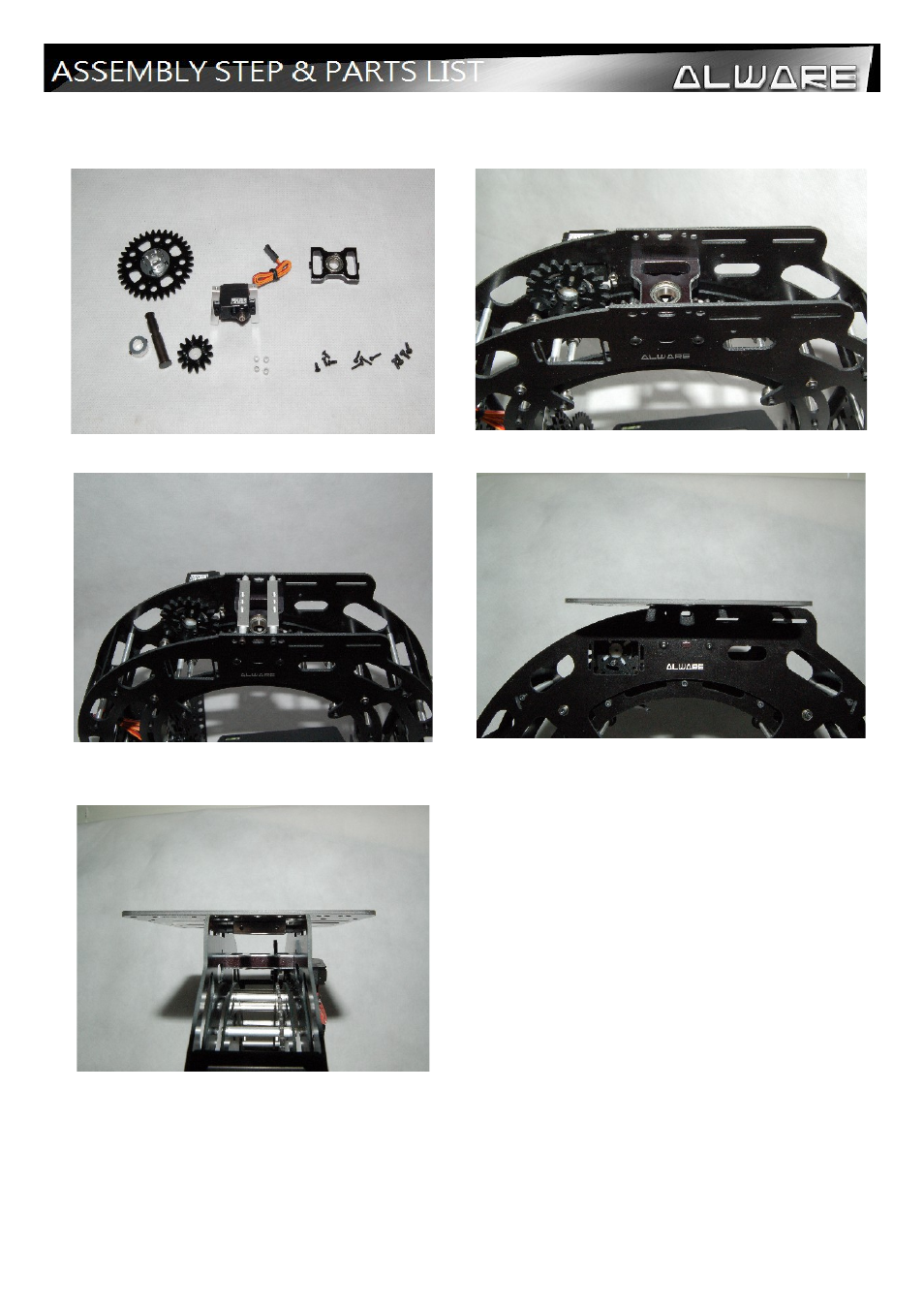

Remove the parts like the picture.
For the Steel Main shaft block. You can remove
one or two as you like.
Install the Al Square Rod 30.5mm disassembled
previously to the new position of the Outer Frame
as shown above.
Then install the Mounting Frame to the Alu Square
Rod 30.5mm using 4pcs M2.5x6mm Hex Cap
Screws.
Side View.
