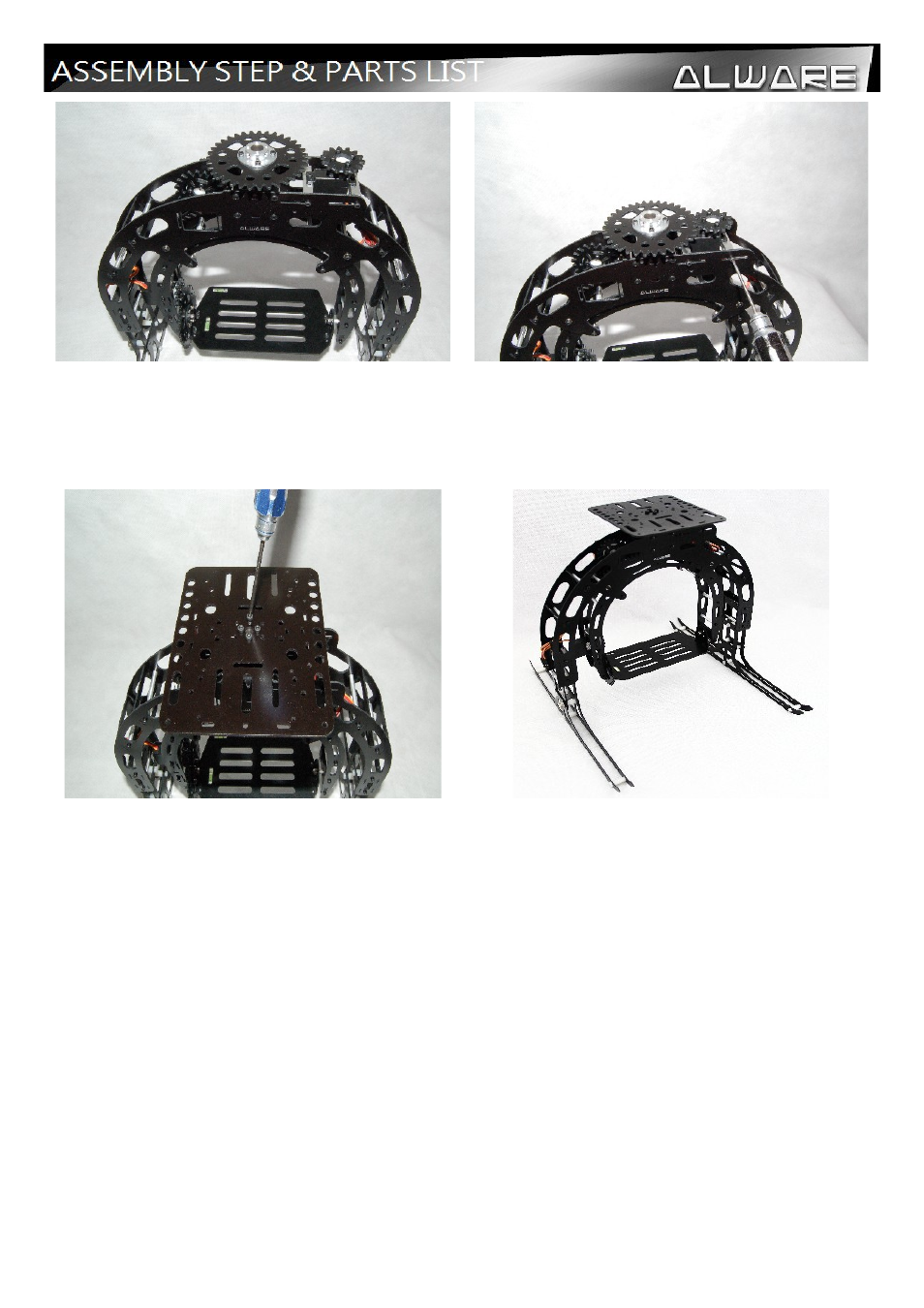

Set all Servos back to it's central position using
receiver etc. Then install All the Spur Gears with
Servo Horn to the Servos and Main Shaft like the
picture. Use M3 Set Screws to secure the Large
Spur Gear Assembly to the main shaft.
(Part No.: 6)
Adjusted the position of the Servos as to obtain a
perfect movement with less tolerance for all 3-Axis
movement.
Install the Mounting Frame to the Large Assembly
with 4pcs M2.5x6mm Hex Cap Screws.
Completed Final Assembly.
