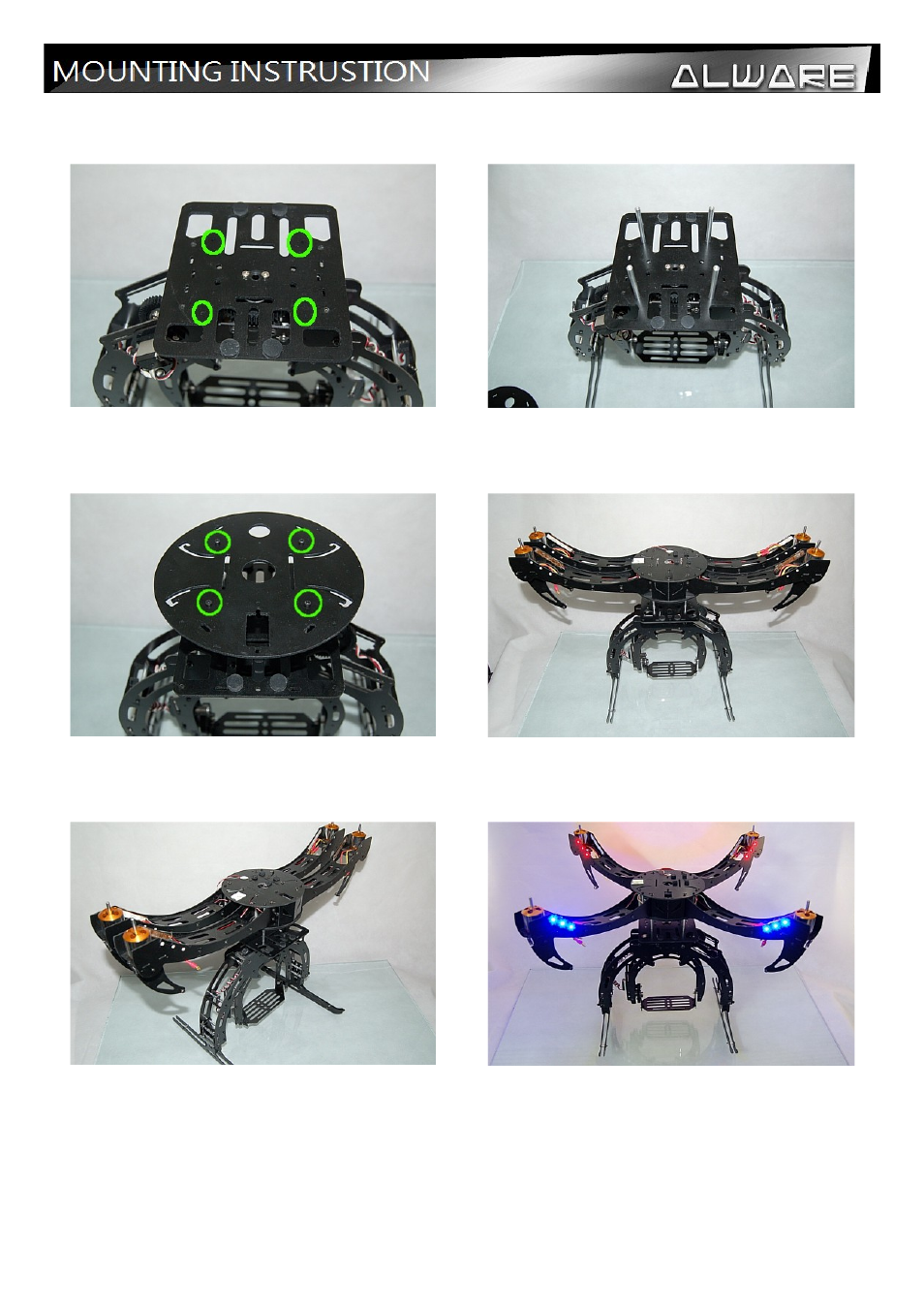

Mounting Instruction to Alware Spider 500 QuadFlyer:
Step 1.
The four 2mm holes shown above is used to
mount on Alware Spider 500.
Step 2.
Install four M2x4x39mm Alu Rods to the mounting
plate of the Pro camera mount using four
M2x6mm Hex Cap Screws.
Step 3.
Install the Lower Frame of Alware Spider 500 to
the Pro Camera Mount using four M2x6mm Hex
Cap Screws to the holes shown above.
Step 4.
Complete assembly.
Step 5.
Side View.
Step 6.
Front View.
