Alwarerc Eagle Pro V4 Camera 3-Axis 360D Panning Gimbal - Manual (Page 4)

Control Axis: 2-3 Axis Controllable Camera mount [Pan(optional), Tilt, Roll]
Mounting: Bottom plate assemble method
Material: Flash, light and strong fiber glass plates, Unique CNC Fiber Glass Spur Gears;
CNC Aluminum Rods and Mounts; High quality Flange Bearings and Screws.
Bearing type: Flange Bearings
Main Shaft Mount: CNC Anodized Metal Mounts
Color: Black fiber plates; Silver anodize Aluminum parts.
Dimension of portable camera: Max. 133*125mm(Wide*Height)
Payload Capability: Up to 800g (But it is limited to the power of your Aircraft)
Operate Servo size: Standard small size servos e.g. ALware MD260, Align DS410, SAVO SH-0261
etc.
Gyro Stabilization for Camera Mount: Build in Gimbal stabilize function of some GPS systems (e.g.
GAUI GU-INS, DJI WooKong-M etc), FY-30A 3-axises Stabilizer etc.
Camera Mount Weight: ~480g (3-Axis Mode), 400g (2-Axis Mode) (Including Metal Gear Digital
Servos)
Max. Height: ~281mm

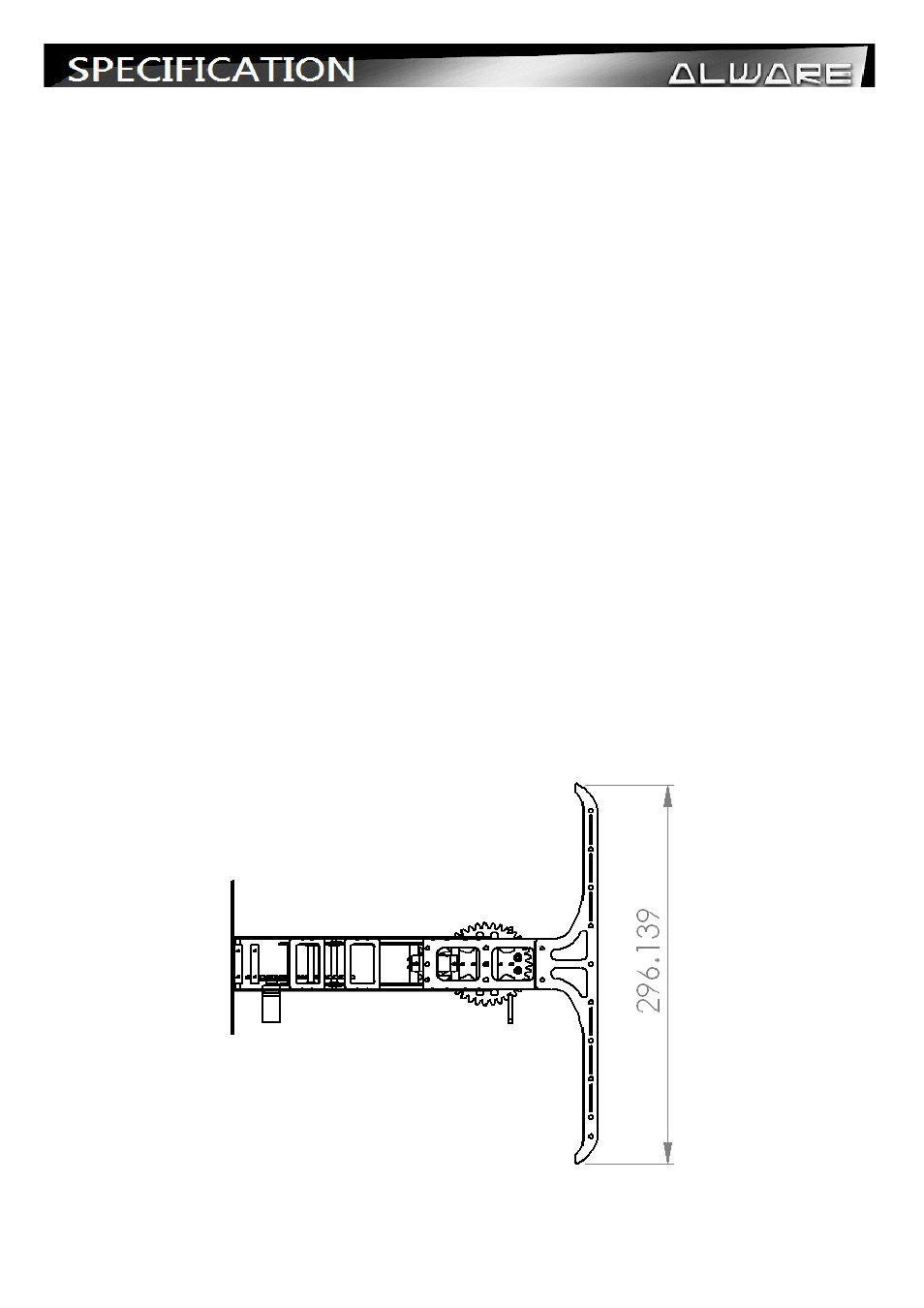

Max. Length: ~296mm
Max. Wide: ~275mm
Pan Range: 0-85°
Tilt Range: 0-90°
Roll Range: 0-45°
