Alwarerc Eagle Pro V4 Camera 3-Axis 360D Panning Gimbal User Manual

Page 18

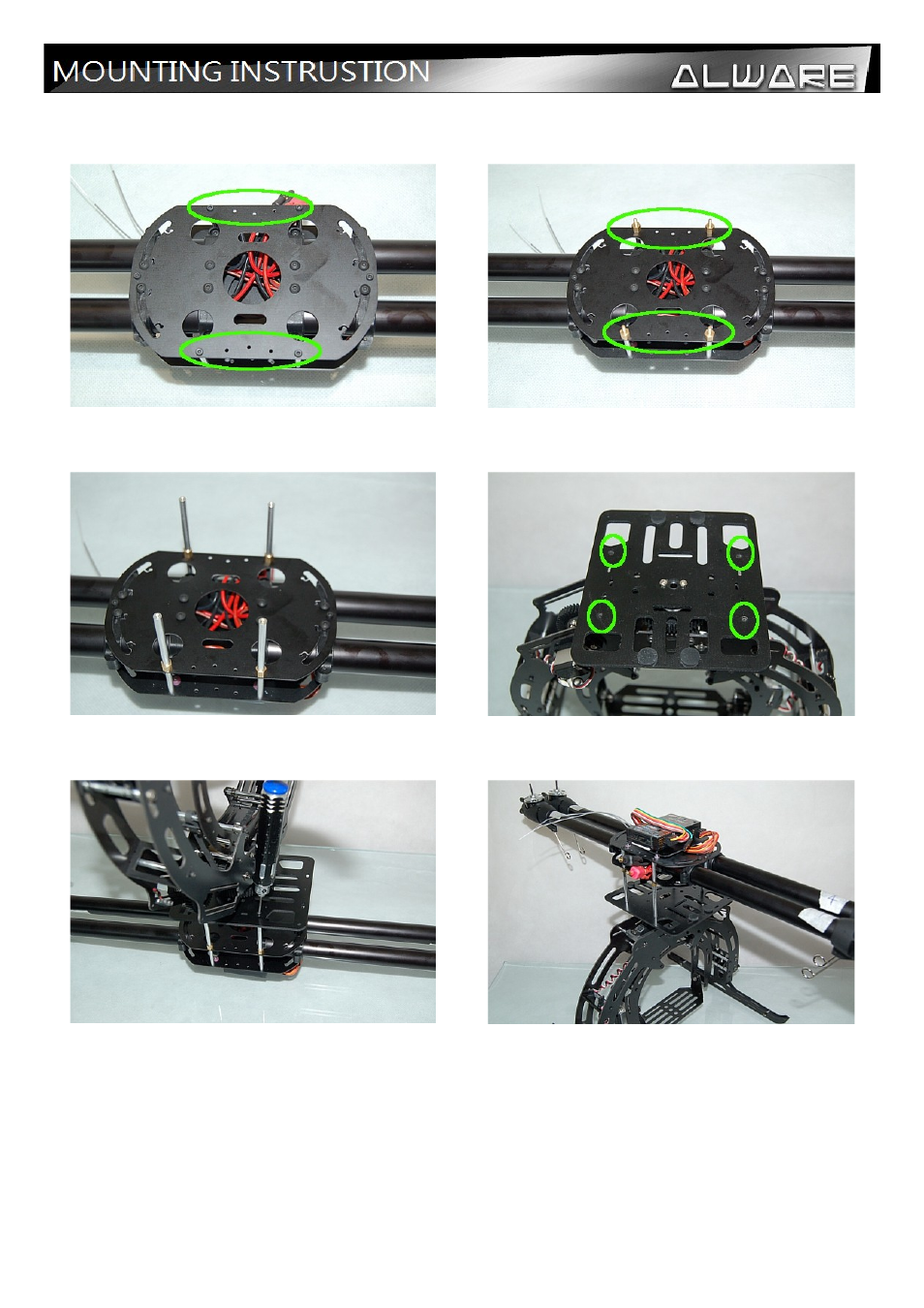

Mounting Instruction to GAUI 500X QuadFlyer:

Step 1.

Unscrew four screws on the bottom frame of GAUI

500X.

Step 2.

Screw four pieces M2 Copper Connectors to the

GAUI 500X.

Step 3.

Install four M2x4x39mm Alu Rods to the M2

Copper Connectors.

Step 4.

The four 2mm holes shown above is used to

mount on GAUI 500X.

Step 5.

Install the Pro Camera Mount to the GAUI 500X

using four M2x6mm Hex Cap Screws.

Step 6.

Completed view of GAUI 500X with Pro Camera

Mount.
