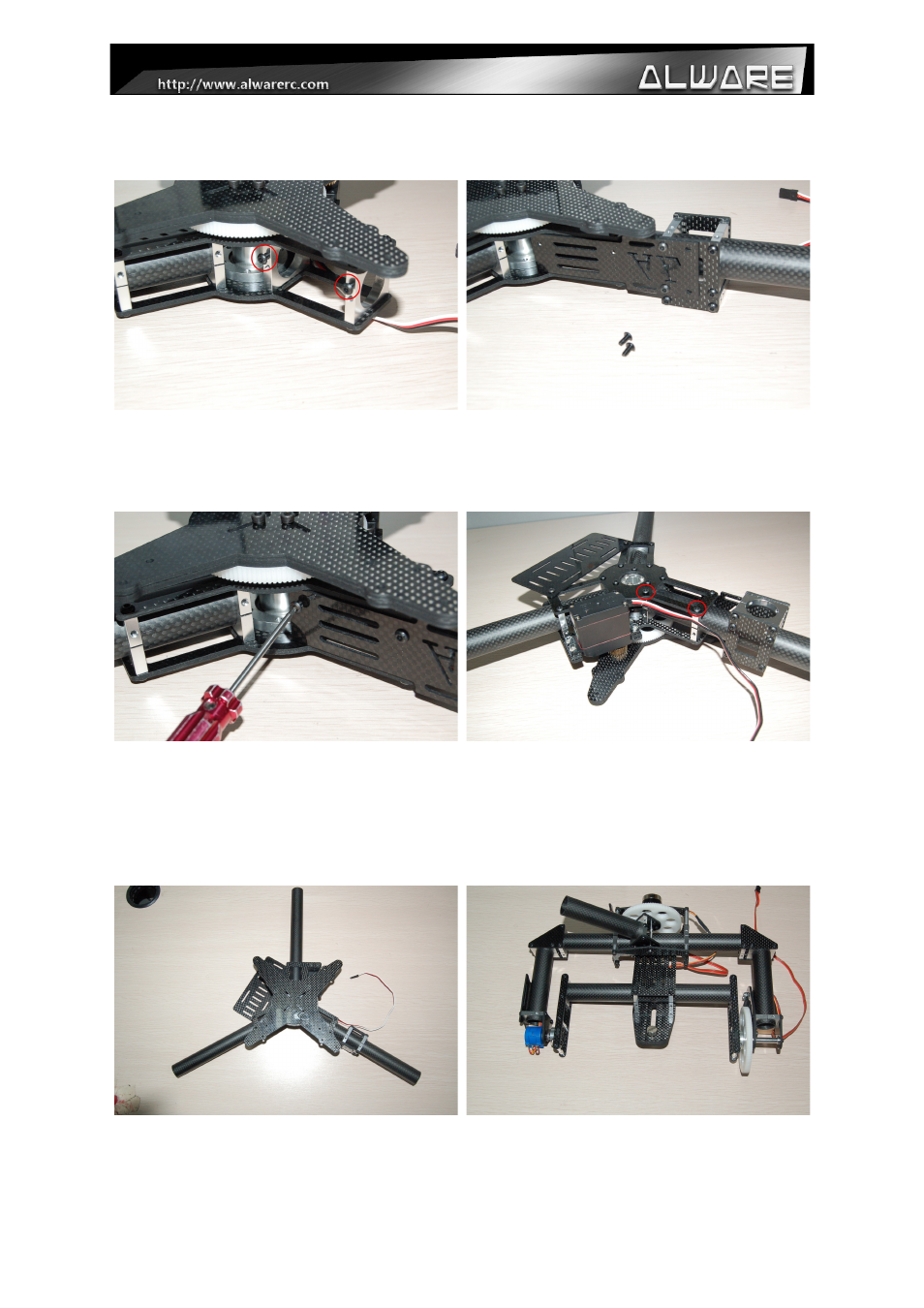

4. Assembly Steps – Gimbal

Step 1.
Loosen two M3x6mm Screw from the Pan
Axis Assembly
for the installation of next
step.

Step 2.
Insert the Boom Connection Assembly into
the Pan Axis Assembly.

Step 3.
Adjust the position of the Boom Connetion
Assembly and secure with 2pcs M3x6mm
Screws.

(Apply little amount of Thread

Locker when assembly metal to metal parts.)

Step 4.
Secure the Boom Connection Assembly onto
the Pan Axis Assembly completely using
2pcs M3x18 Screws.

(Apply little amount of

Thread Locker when assembly metal to metal
parts.)

Step 5.
Complete Assembly of Pan Axis Mechanism.

Step 6.
Prepare the Tilt-Roll Assembly.
