Alwarerc Lensman-X Public 3-Axis Gimbal (For Streak 800Pro) - Manual (Page 13)

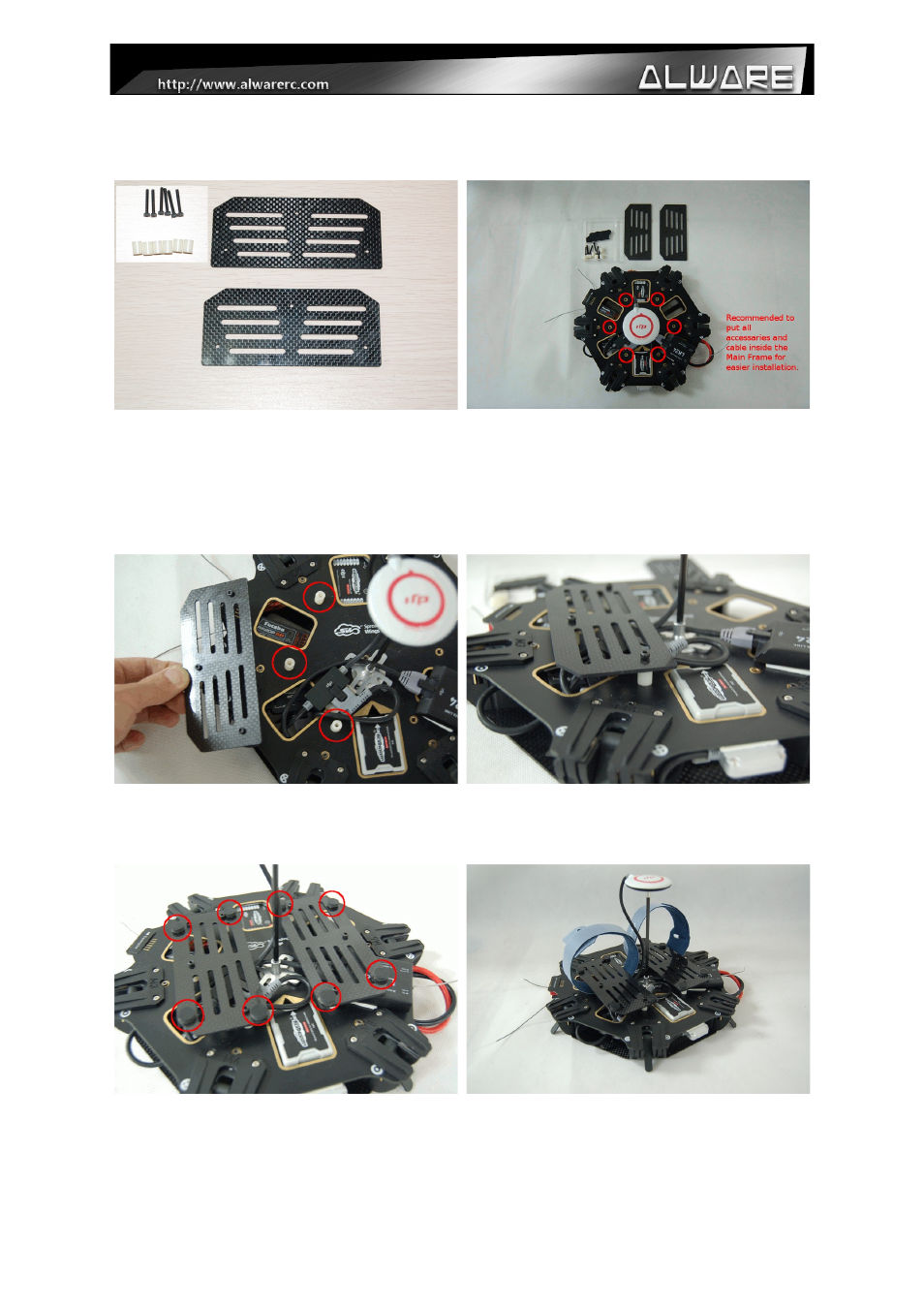

5.2 Assembly Steps – Carbon Battery Mount For DJI S800
Step 1.
Prepare the Carbon Fiber Battery Mount
For DJI S800, 6pcs M2.5x18mm Screws and
6pcs 9mm Nylon Collar. Step 2.
Remove 6pcs M2.5 screws from your DJI
S800 Main frame as to install the Carbon
Battery Mount. All accessaries and cable
should be put away from the upper main
frame of DJI S800.
Step 3.
Place 3pcs 9mm Nylon Collar onto the main
frame of DJI 800. Step 4.
Secure each Carbon Battery Mount using
3pcs M2.5x18mm Screws.
Step 5.
Foam tap(not included) should be used to
support Batteries on Carbon Mount. Step 6.
Complete assembly of Carbon Battery Mount
on DJI S800.
Page 13
