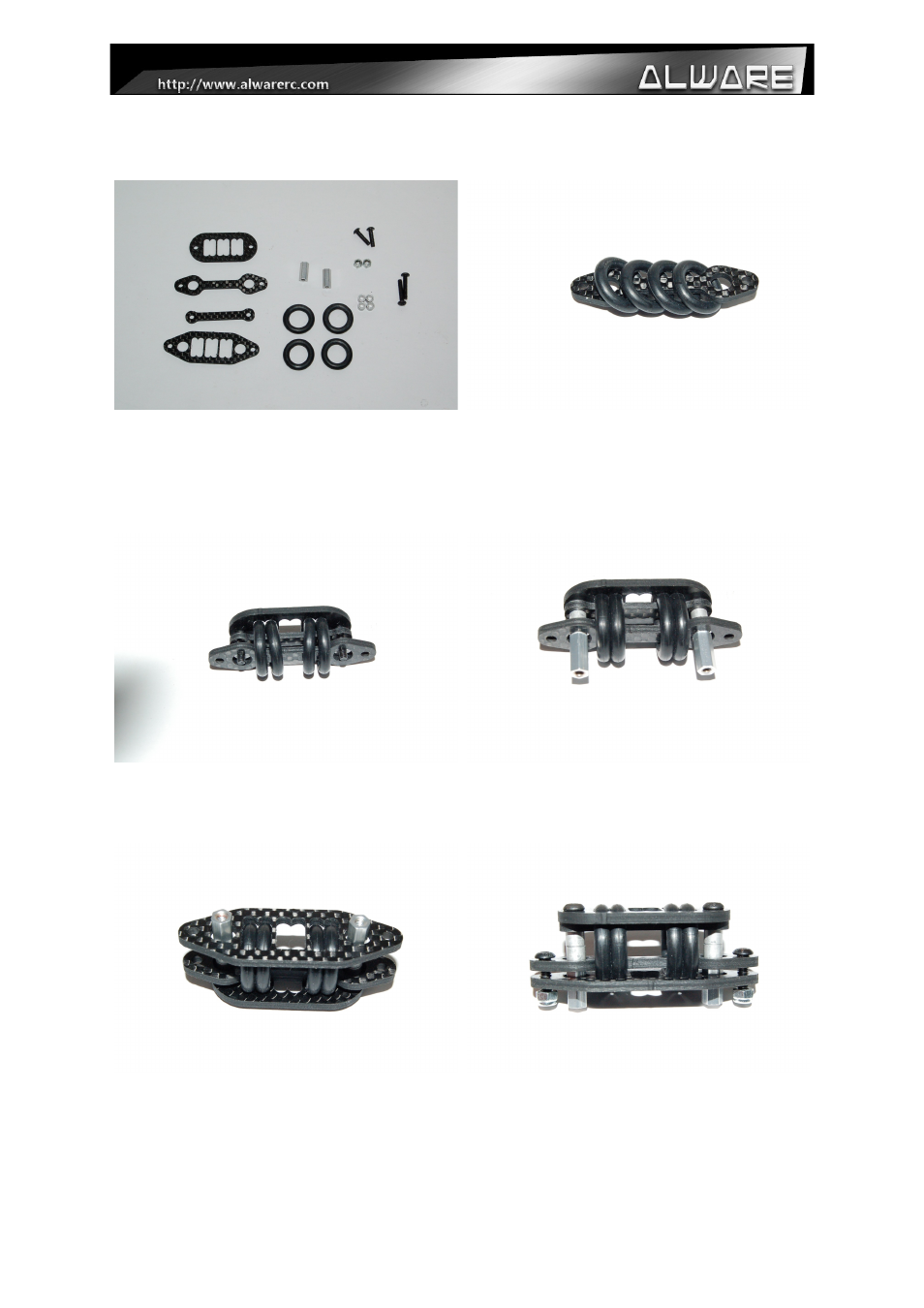

5.4 Assembly Steps – O-Ring Damping System
Step 1.
Part list of each O-ring Damping System.
Step 2.
Default 4pcs O-ring have been used. It is able
to support Camera with Appro. 1kg. You can
adjust the number of O-ring used to suit your
own camera.
Step 3.
Step 4.
(Apply little amount of Thread Locker to the
screws before installation.)
Step 5.
Step 6.
