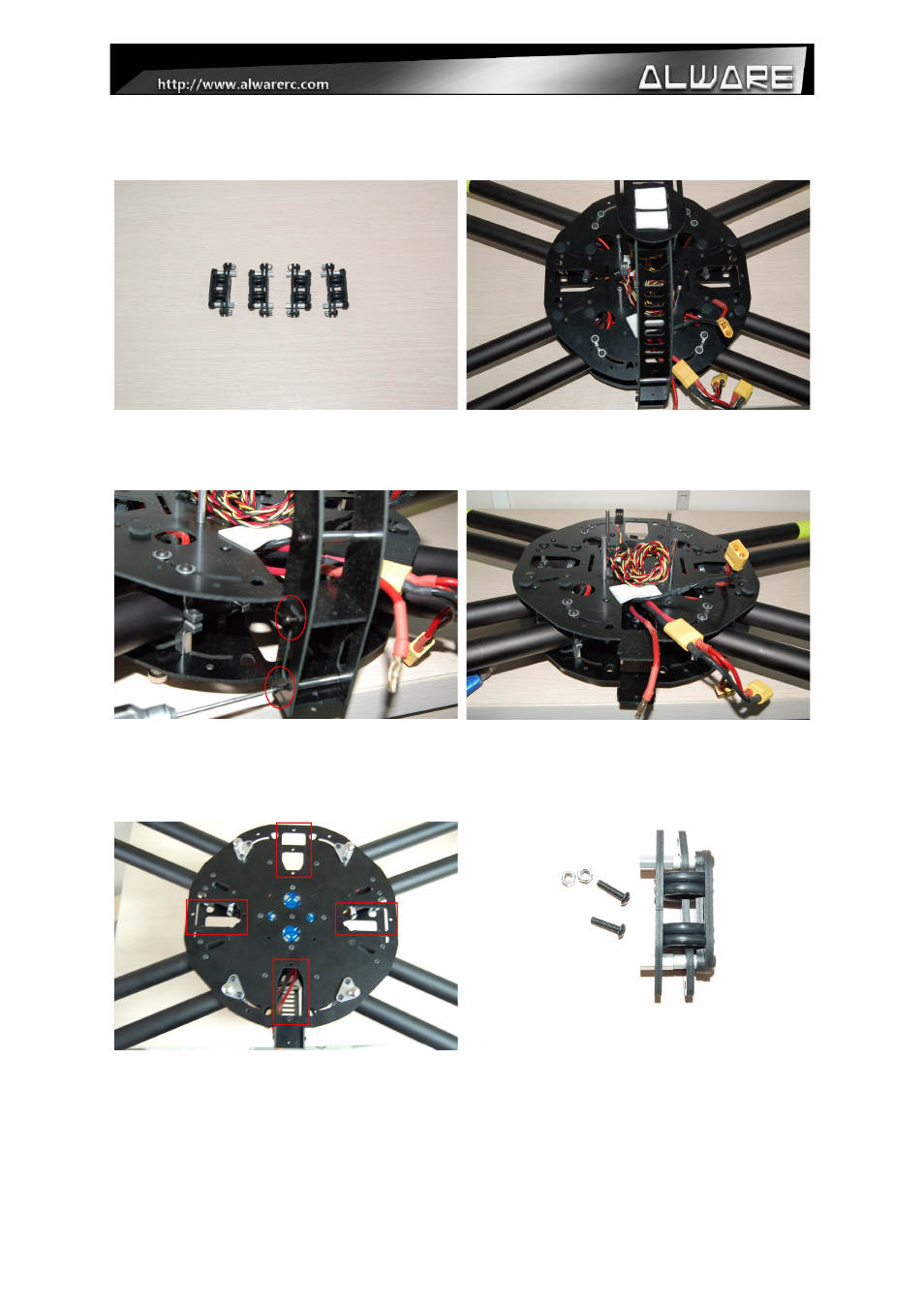

5.3 Assembly Steps – Mounting onto Streak 1000
Step 1.
Prepare the O-ring Damping System (For
Streak 1000).
Step 2.
Prepare your Streak 1000 Octocopter with
Landing Gear reomved.
Step 3.
Disassembly the FPV & GPS Mount from
the Streak 1000 as to install the O-ring
Damping System.
Step 4.
Streak 1000 with FPV & GPS Mount
removed.
Step 5.
Notice the holes on the Streak 1000 to install
the O-ring Damping System.
Step 6.
Remove 2pcs M3x10mm Screws from the O-
ring Damper.
Page 14
